FOOT BRAKE MANUAL CONTROL

Mechanical component controls

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the centre console (see Centre console: Removal - Refitting) (MR 416, 57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Mechanical component controls

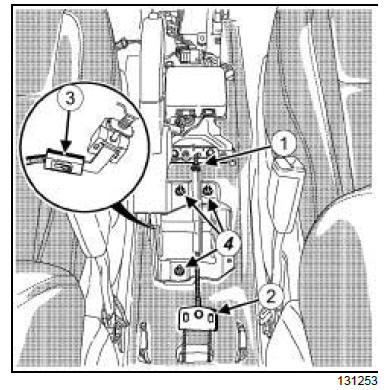

  • Remove the adjustment nut (1) to completely loosen the parking brake cable.
  • Separate the parking brake cable from the parking brake compensator (2) .
  • Disconnect the connector (3) from the parking brake switch.
  • Remove:
    • the nuts (4) from the parking brake lever,
    • the parking brake lever.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the parking brake lever,
    • the parking brake lever nuts.
  • Torque tighten the parking brake lever nuts (14 N.m).
  • Connect:
    • the parking brake switch connector,
    • the parking brake cable to the parking brake compensator.
  • Refit the adjustment nut.

II - FINAL OPERATION.

  • Adjust the parking brake (see 37A, Mechanical component controls, Parking brake lever: Adjustment, page 37A-38) .
  • Refit the centre console (see Centre console: Removal - Refitting) (MR 416, 57A, Interior equipment).
