Renault Koleos Service Repair Manual: Rear final drive coupler computer: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Rear axle / Rear final drive coupler computer: Removal - Refitting

Rear axle

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear axle

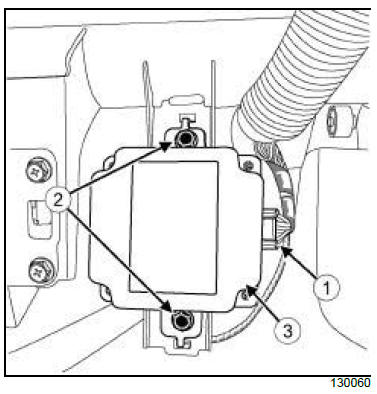

  • Disconnect the connector (1) from the electric coupler computer.
  • Remove:
    • the bolts (2) from the electric coupler computer,
    • the electric coupler computer (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the electric coupler computer,
    • the bolts of the electric coupler computer.

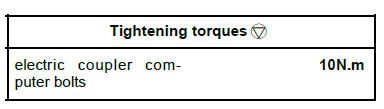

  • Torque tighten the electric coupler computer bolts (10N.m).
  • Connect the connector to the electric coupler computer.

II - FINAL OPERATION.

  • Refit the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
    Rear final drive coupler: Removal - Refitting

    Driveshafts
