Renault Koleos Service Repair Manual: Rear axle oil: Draining - Filling

Renault Koleos Service Repair Manual / Transmission / Rear axle / Rear axle oil: Draining - Filling

4X4 TRANSMISSION

Rear axle

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

I - DRAINING

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.

Rear axle

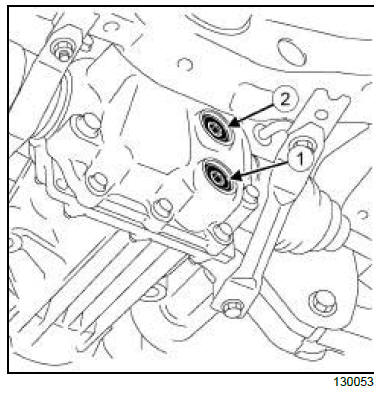

  • Remove the drain plug (1) .
  • Drain the oil.
  • Remove the drain plug seal.

II - FILLING

  • Always replace the seals of the drain plug and filler cap.
  • Clean the drain plug.
  • Refit:
    • the new drain plug seal,
    • the drain plug.

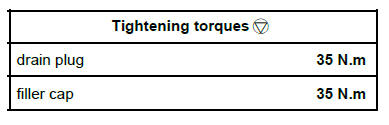

  • Torque tighten the drain plug (35 N.m).
  • Remove:
    • the filler cap (2) ,
    • the filler cap seal.

Rear axle

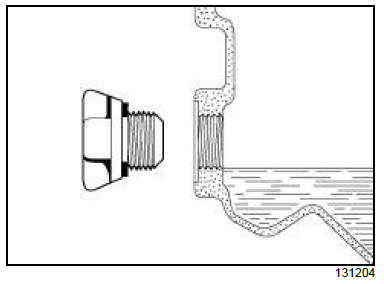

  • Fill the rear final drive with oil up to the level of the opening.
  • Refit:
    • the new filler cap seal,
    • the filler cap.
  • Torque tighten the filler cap (35 N.m).
