Renault Koleos Service Repair Manual: Particle filter temperature sensors: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Exhaust / Particle filter temperature sensors: Removal - Refitting

M9R

Exhaust

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

Exhaust

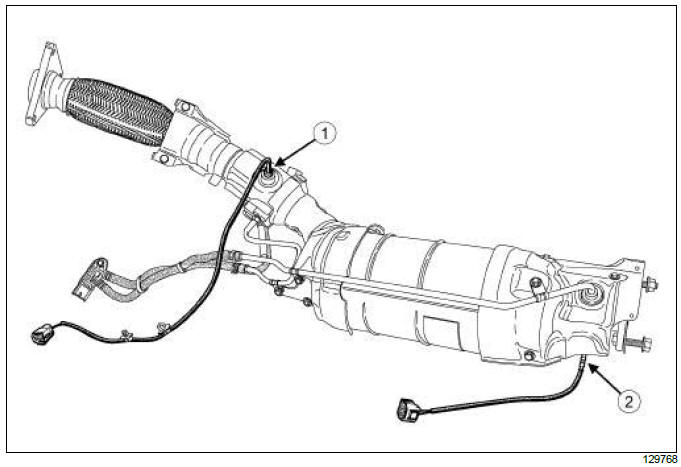

  1. Temperature sensor upstream of the particle filter
  2. Temperature sensor downstream of the particle filter

REFITTING

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Downstream temperature sensor

Exhaust

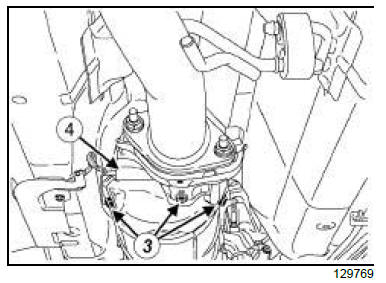

  • Remove:
    • the downstream temperature sensor insulation bolts (3) ,
    • the downstream temperature sensor insulation (4) .

Exhaust

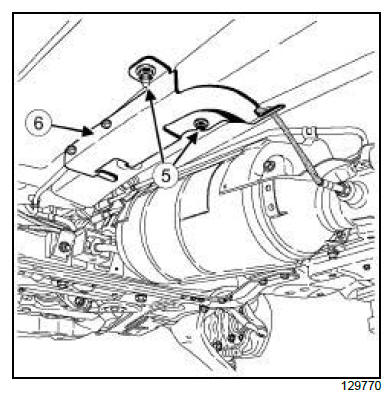

  • Remove the bolt and the nut (5) of the downstream temperature sensor mounting.
  • Unclip the downstream temperature sensor mounting (6) .

Exhaust

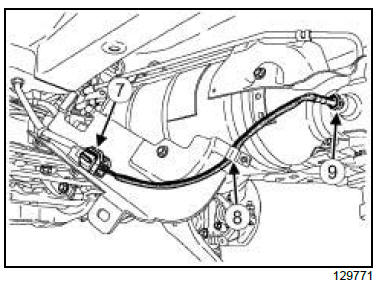

  • Disconnect the particle filter downstream temperature sensor connector (7) .
  • Unclip the wiring at (8) .
  • Remove the particle filter downstream temperature sensor union (9) from its adapter welded to the particle filter.

2 - Upstream temperature sensor.

  • Remove the particle filter.

Exhaust

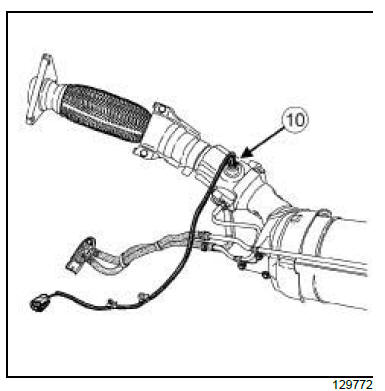

  • Remove the particle filter upstream temperature sensor union (10) from its adapter welded to the particle filter.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the temperature sensor wiring.
Note: If necessary, replace the particle filter temperature sensor wiring.
  • Coat the particle filter downstream temperature sensor bolt union with COPPER-ALUMINIUM LUBRICANT.

II - REFITTING OPERATION FOR PART CONCERNED

1 - Upstream temperature sensor.

  • Refit the upstream temperature sensor to its adapter.

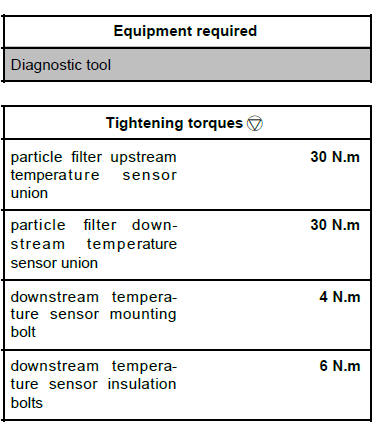

  • Torque tighten the particle filter upstream temperature sensor union (30 N.m).
  • Refit the particle filter.

2 - Downstream temperature sensor

  • Refit the downstream temperature sensor to its adapter.
  • Torque tighten the particle filter downstream temperature sensor union (30 N.m).
  • Connect the downstream temperature sensor connector.
  • Clip on the downstream temperature sensor wiring at (8) .
  • Refit the downstream temperature sensor mounting.
  • Torque tighten the downstream temperature sensor mounting bolt (4 N.m).
  • Refit the downstream temperature sensor insulator.
  • Torque tighten the downstream temperature sensor insulation bolts (6 N.m).

III - FINAL OPERATION.

  • Connect the battery.
  • Check that there are no faults using the Diagnostic tool.
