M9R

Exhaust

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair .

Exhaust

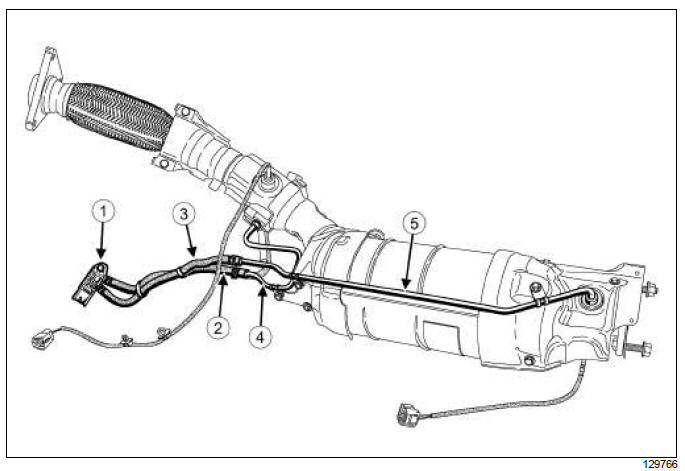

  1. Particle filter pressure sensor
  2. Upstream pressure measurement hose
  3. Downstream pressure measurement hose
  4. Upstream pressure measurement connection
  5. Downstream pressure measurement connection

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove the particle filter.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exhaust

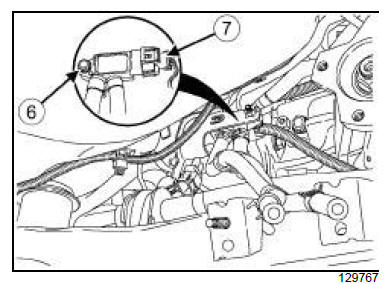

  • Remove the particle filter pressure sensor bolt (6) .
  • Disconnect the particle filter pressure sensor connector (7) .
  • Remove the particle filter pressure sensor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the particle filter pressure sensor.
  • Connect the particle filter pressure sensor connector.

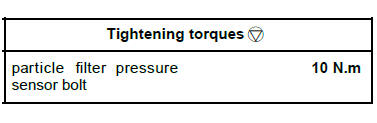

  • Torque tighten the particle filter pressure sensor bolt (10 N.m).

II - FINAL OPERATION.

  • Refit the particle filter.
  • Connect the battery.
    Particle filter: Cleaning

    Particle filter temperature sensors: Removal - Refitting
