Renault Koleos Service Repair Manual: Starter: Removal - Refitting

M9R

Starting - charging

REMOVAL

I - REMOVAL PREPARATION OPERATION

Starting - charging

  • Remove:
    • the engine cover,
    • the air inlet sleeve clips (1) ,
    • the air inlet sleeve from the air filter unit,
    • the battery .
    • the battery tray.

Starting - charging

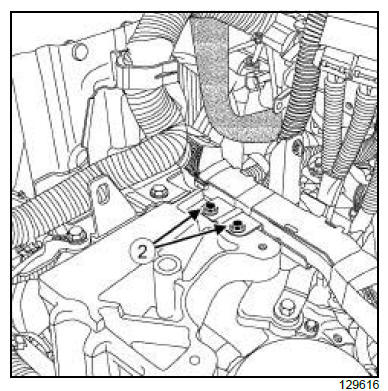

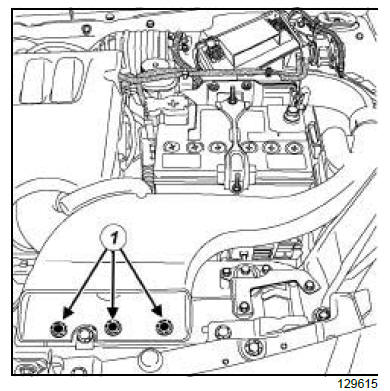

  • Remove the bolts (2) from the engine wiring harness channel.
  • Move aside the wiring.

Starting - charging

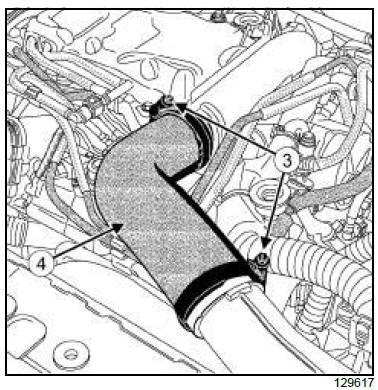

  • Loosen the clips (3) from the air inlet hose on the intercooler.
  • Disconnect the intercooler air inlet hose (4) from the air inlet pipes of the intercooler.

Starting - charging

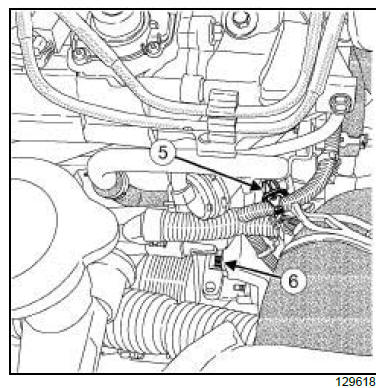

  • Unclip the wiring at (5) .
  • Remove the bolt (6) from the wiring bracket.
  • Separate the " wiring bracket - wiring " assembly.

Starting - charging

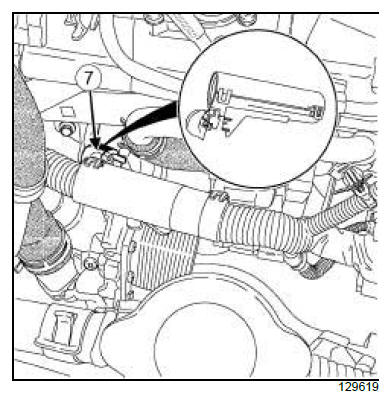

  • Unclip the cap from terminal B (7) .
  • Remove the cap from terminal B.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Starting - charging

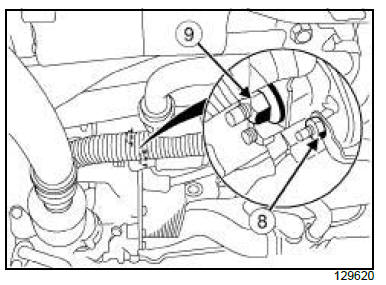

  • Remove:
    • the nut of terminal S (8) ,
    • the nut of terminal B (9) ,
    • the cable of terminal S,
    • the cable of terminal B.

Starting - charging

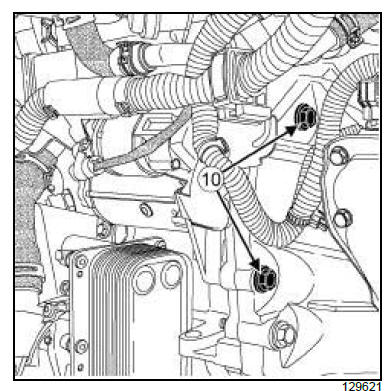

  • Remove:
    • the starter bolts (10) ,
    • the starter by raising the vehicle.

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the starter,
    • the starter bolts.

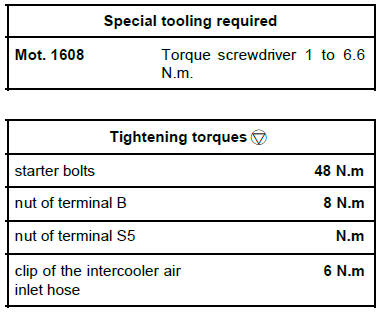

  • Torque tighten the starter bolts (48 N.m).
  • Refit:
    • the cable of terminal B,
    • the cable of terminal S,
    • the nut of terminal B,
    • the nut of terminal S.
  • Torque tighten:
    • the nut of terminal B (8 N.m),
    • the nut of terminal S5 (N.m),

II - FINAL OPERATION.

  • Clip on the cap of terminal B.
  • Fit the " wiring bracket - wiring " assembly.
  • Refit the bolt (6) of the wiring bracket.
  • Clip the wiring onto its mounting (5) .
  • Connect the air inlet hose to the air inlet pipes of the intercooler
  • Torque tighten the clip of the intercooler air inlet hose (6 N.m) using the tool (Mot. 1608).
  • Position the wiring.
  • Refit the wiring bolts (2) .
  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve from the air filter unit
    • the air inlet sleeve clips
    • the engine cover.

2TR, and 6-SPEED MANUAL GEARBOX

Starting - charging

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the air intake sleeve
    • the battery
    • the battery tray
    • the engine undertray.

Starting - charging

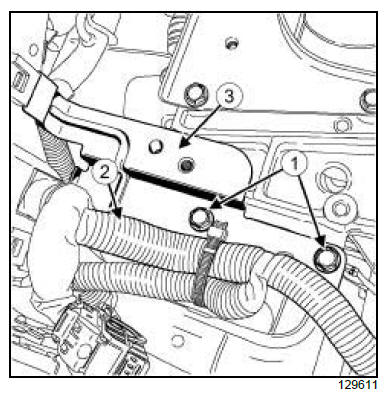

  • Remove the bolts (1) from the wiring bracket.
  • Separate the wiring (2) and its bracket (3) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Starting - charging

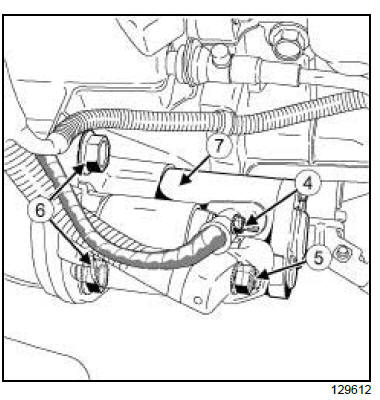

  • Remove:
    • the nut (4) of terminal S,
    • the nut (5) of terminal B,
    • the starter bolts (6) ,
    • the starter (7) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the starter,
    • the starter bolts.

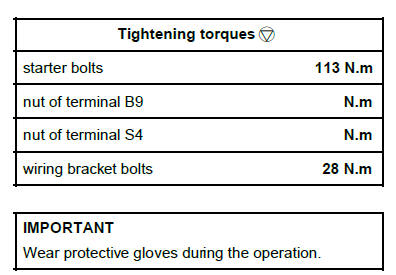

  • Torque tighten the starter bolts (113 N.m).
  • Refit:
    • the nut of terminal B,
    • the nut of terminal S.
  • Torque tighten:
    • the nut of terminal B9 (N.m),
    • the nut of terminal S4 (N.m).

II - FINAL OPERATION

  • Refit:
    • the wiring (2) and its bracket (3) .
    • the wiring bracket bolts.
  • Torque tighten the wiring bracket bolts (28 N.m).
  • Refit:
    • the engine undertray,
    • the battery tray,
    • the battery,
    • the air intake sleeve.

2TR, and FK0 or FK8

Starting - charging

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Disconnect the battery.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Starting - charging

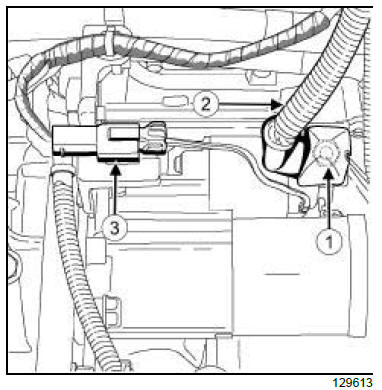

  • Remove the nut of terminal B (1) .
  • Disconnect:
    • the wiring of terminal B (2) ,
    • the connector S (3) .

Starting - charging

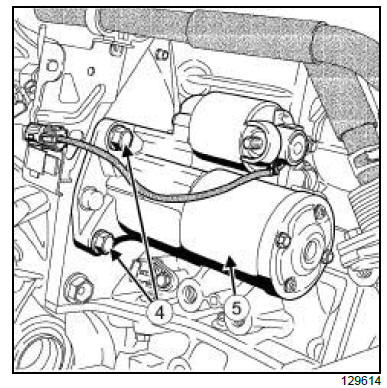

  • Remove:
    • the starter bolts (4) ,
    • the starter (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the starter,
    • the starter bolts.

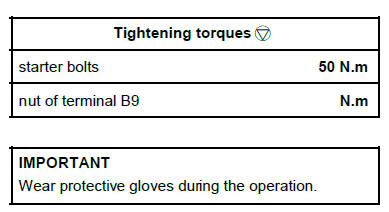

  • Torque tighten the starter bolts (50 N.m).
  • Connect:
    • the connector S,
    • the wiring of terminal B.
  • Torque tighten the nut of terminal B9 (N.m).

II - FINAL OPERATION.

  • Connect the battery.
