Renault Koleos Service Repair Manual: Alternator: Removal - Refitting

M9R

Starting - charging

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift .
  • Disconnect the battery.
  • Remove:
    • the engine cover
    • the front right-hand wheel
    • the front right-hand wheel arch liner
    • the accessories belt.

Starting - charging

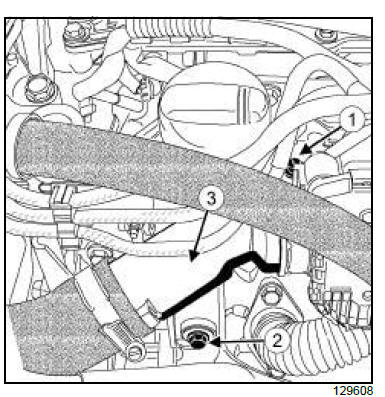

  • Loosen the clip (1) on the intercooler air outlet pipe.
  • Remove the intercooler air outlet pipe bolt (2) .
  • Disconnect the intercooler air outlet pipe (3) from the damper valve.
  • Move the intercooler air outlet pipe to one side.

Starting - charging

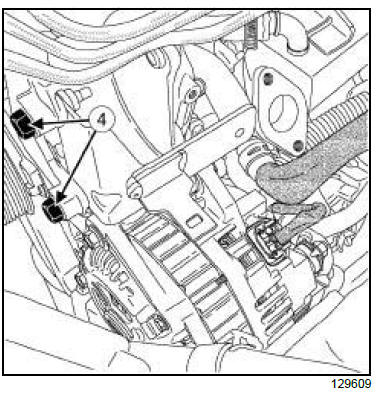

  • Remove:
    • the bolts of the support (4) of the expansion bottle hose,
    • the support of the expansion bottle hose.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Starting - charging

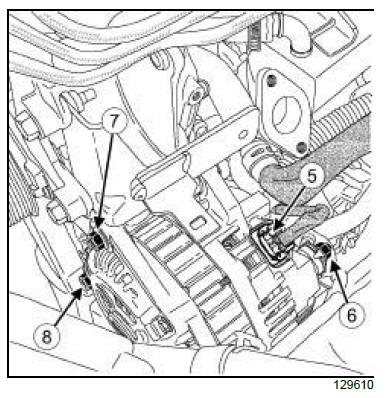

  • Disconnect the alternator connector (5) .
  • Remove:
    • the nut (6) from the alternator positive terminal.
    • the alternator positive terminal cable,
    • the alternator upper bolt (7) .
  • Loosen the alternator lower bolt (8) .
  • Slowly remove the lower bolt of the alternator until the bolt head comes into contact with the side member.
  • Pull the alternator towards the front of the vehicle.
  • Lift the alternator to remove it with its lower bolt.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the alternator with its lower bolt on the support,
    • the alternator upper bolt,
    • the alternator positive terminal cable,
    • the alternator positive terminal nut.

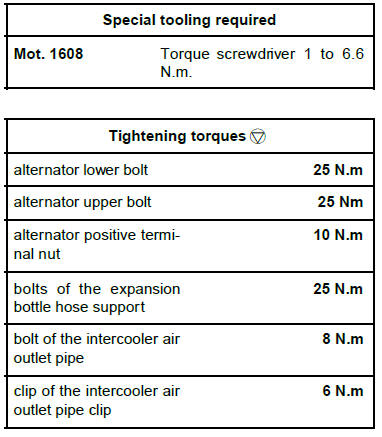

  • Torque tighten:
    • the alternator lower bolt (25 N.m),
    • the alternator upper bolt (25 Nm),
    • the alternator positive terminal nut (10 N.m).
  • Connect the alternator connector of the intercooler to the damper valve

II - FINAL OPERATION.

  • Fit the support of the expansion bottle hose.
  • Refit the bolts of the expansion bottle hose support.
  • Torque tighten the bolts of the expansion bottle hose support (25 N.m).
  • Connect the intercooler air outlet pipe to the damper valve.
  • Refit the bolt of the intercooler air outlet pipe on the damper valve.
  • Torque tighten:
    • the bolt of the intercooler air outlet pipe (8 N.m),
    • the clip of the intercooler air outlet pipe clip (6 N.m) using the tool (Mot. 1608).
  • Refit:
    • the accessories belt
    • the front right-hand wheel arch liner
    • the front right-hand wheel
    • the engine cover
  • Connect the battery.

2TR

Starting - charging

IMPORTANT Wear protective gloves during the operation.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Disconnect the battery.
  • Remove:
    • the front right-hand wheel
    • the front right-hand wheel arch liner
    • the accessories belt
    • the windscreen washer bottle neck

II - OPERATION FOR REMOVAL OF PART CONCERNED

Starting - charging

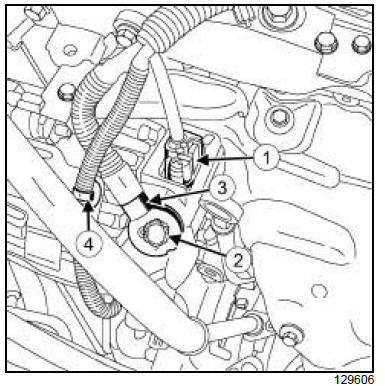

  • Disconnect the alternator connector (1) .
  • Remove the nut (2) from terminal B.
  • Disconnect the wiring (3) .
  • Remove the clip (4) from the wiring.

Starting - charging

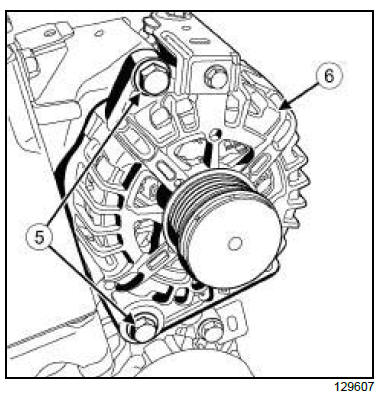

  • Remove:
    • the alternator bolts (5) ,
    • the alternator (6) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the alternator,
    • the alternator bolts.

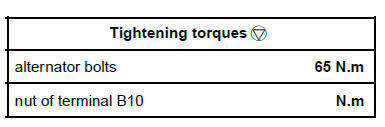

  • Torque tighten the alternator bolts (65 N.m).
  • Refit the wiring clip (4) .
  • Connect the wiring (3) .
  • Torque tighten the nut of terminal B10 (N.m).
  • Connect the alternator connector.

II - FINAL OPERATION.

  • Refit:
    • the windscreen washer bottle neck
    • the accessories belt
    • the front right-hand wheel arch liner
    • the front right-hand wheel
  • Connect the battery .
