Renault Koleos Service Repair Manual: Fuel vapour absorber bleed solenoid valve: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Antipollution / Fuel vapour absorber bleed solenoid valve: Removal - Refitting

2TR

Antipollution

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove the engine cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Antipollution

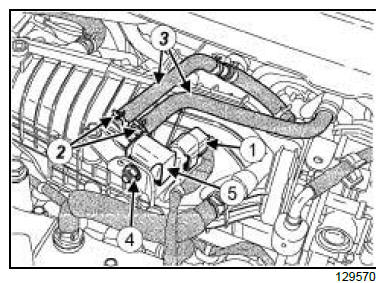

  • Disconnect the fuel vapour absorber bleed solenoid valve connector (1) .
  • Remove the clips (2) from the fuel vapour absorber bleed pipes.
  • Disconnect the fuel vapour absorber bleed pipes (3) .
  • Remove:
    • the fuel vapour absorber bleed solenoid valve nut (4) ,
    • the bleed solenoid valve (5) from the fuel vapour absorber.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the fuel vapour absorber bleed solenoid valve,
    • the fuel vapour absorber bleed solenoid valve nut.

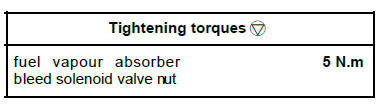

  • Torque tighten the fuel vapour absorber bleed solenoid valve nut (5 N.m).
  • Connect the fuel vapour absorber bleed pipes.
  • Refit the fuel vapour absorber bleed pipe clips.
  • Connect the fuel vapour absorber bleed solenoid valve connector.

II - FINAL OPERATION.

  • Refit the engine cover.
  • Connect the battery.
