Renault Koleos Service Repair Manual: Oil vapour rebreathing circuit: Operating diagram

Renault Koleos Service Repair Manual / Engine and peripherals / Antipollution / Oil vapour rebreathing circuit: Operating diagram

2TR

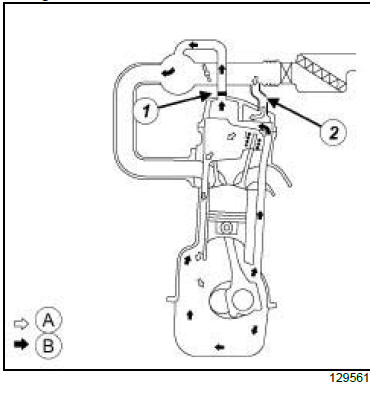

I - Under low loads, the oil vapour is rebreathed through the PCV valve

Antipollution

  1. Fresh air
  2. Oil vapour
  1. PCV valve
  2. Fresh air hose

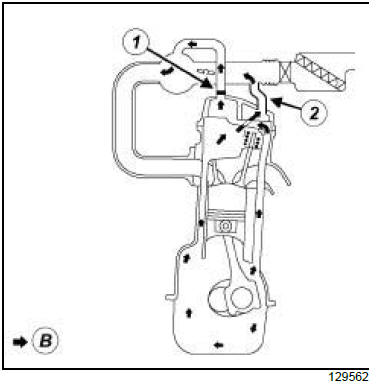

II - Under medium and heavy loads, the oil vapour is rebreathed through the PCV valve and the fresh air hose

Antipollution

  1. Oil vapour
  1. PCV valve
  2. Fresh air hose

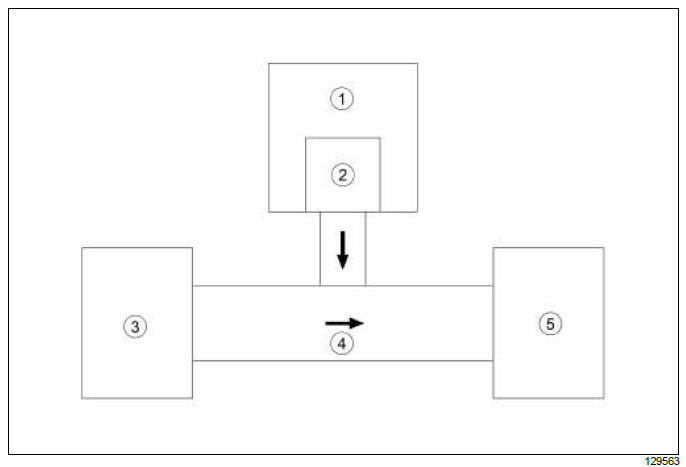

M9R

Antipollution

  1. Engine
  2. Oil separator
  3. Air filter unit
  4. Air filter unit air outlet duct
  5. Turbocharger

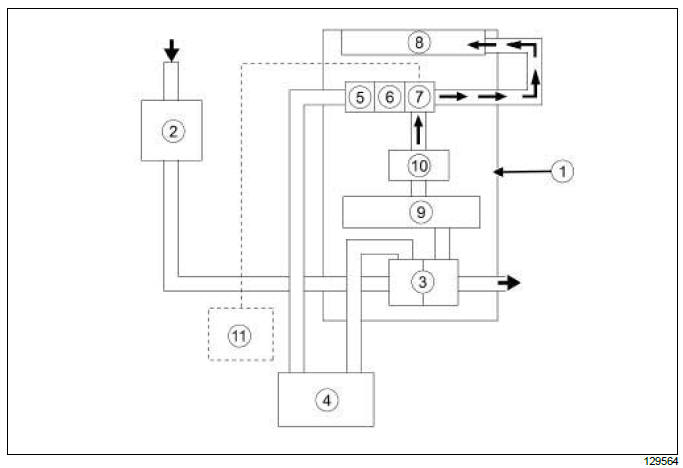

Exhaust gas recirculation: Operating diagram

M9R

Antipollution

  1. Engine
  2. Air filter unit
  3. Turbocharger
  4. Intercooler
  5. Air inlet valve
  6. Turbocharging pressure sensor housing
  7. Exhaust gas recirculation solenoid valve control
  8. Intake distributor
  9. Exhaust manifold
  10. Exhaust gas cooler
  11. Diesel injection computer

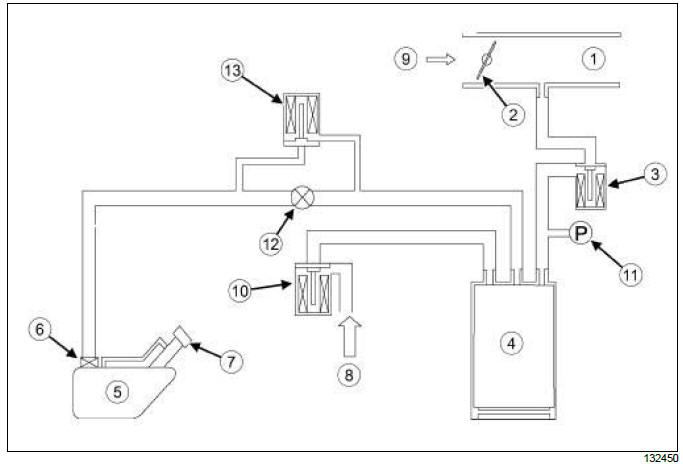

Fuel vapour recirculation circuit: Operating diagram

2TR

OPERATING DIAGRAM OF THE CIRCUIT

Antipollution

  1. Inlet manifold
  2. Throttle valve
  3. Fuel vapour absorber bleed solenoid valve
  4. Fuel vapour absorber
  5. Fuel tank
  6. Fuel anti-return valve
  7. Fuel filler cap
  8. Fresh air vent
  9. Fresh air
  10. Fuel vapour absorber drain stop solenoid valve
  11. Fuel vapour pressure sensor
  12. Anti-return valve
  13. Anti-return valve bypass solenoid valve
    Antipollution

    Fuel vapour absorber: Removal - Refitting
