Renault Koleos Service Repair Manual: Air resonator: Removal - Refitting

2TR

Fuel mixture

Note: This vehicle is fitted with two air resonators.

I - REMOVING THE AIR RESONATOR IN THE FRONT END PANEL

1 - REMOVAL PREPARATION OPERATION

IMPORTANT Wear protective gloves during the operation.
  • Position the vehicle on a two-post lift.
  • Remove:
    • the front left-hand wheel
    • the front splash guard
    • the front wheel arch liners

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

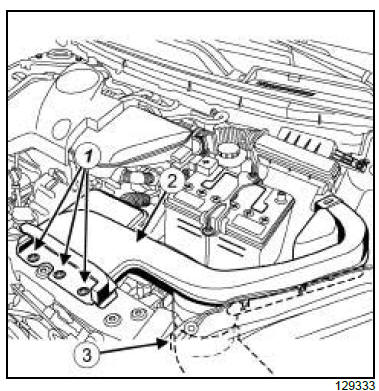

  • Unclip the air inlet sleeve clips (1) .
  • Remove:
    • the air inlet sleeve (2) ,
    • the air resonator sleeve (3) .

Fuel mixture

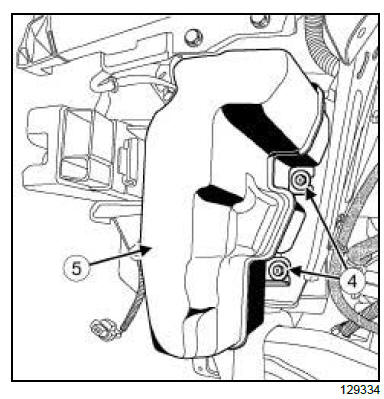

  • Remove:
    • the front end panel air resonator bolts (4) ,
    • the front end panel air resonator (5) .

II - REFITTING THE AIR RESONATOR IN THE FRONT END PANEL

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the front end panel air resonator (5) ,
    • the front end panel air resonator bolts (4) .

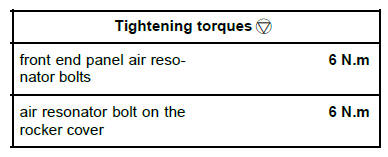

  • Torque tighten the front end panel air resonator bolts (6 N.m).
  • Refit:
    • the air resonator sleeve (3) ,
    • the air inlet sleeve (2) .
  • Clip on the air inlet sleeve clips.

2 - FINAL OPERATION

  • Refit:
    • the front left-hand wheel
    • the front splash guard
    • the front wheel arch liners

III - REMOVING THE AIR RESONATOR ON THE ROCKER COVER

1 - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift
  • Remove the engine cover.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

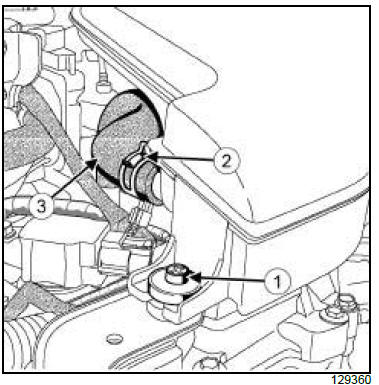

  • Remove:
    • the air resonator bolt on the rocker cover (1) ,
    • the oil vapour rebreathing pipe clip (2) .
  • Disconnect the oil vapour rebreathing pipe (3) from the air resonator.

Fuel mixture

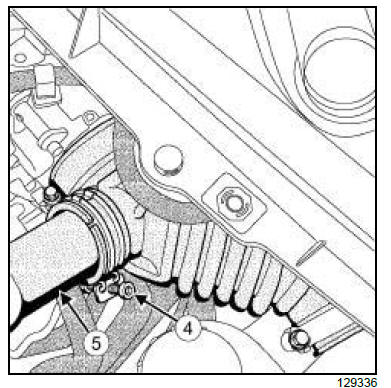

  • Loosen the air resonator clip (4) .
  • Remove the air resonator (5) from the air inlet sleeve.

IV - REFITTING THE AIR RESONATOR ON THE ROCKER COVER

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit the air resonator (5) on the rocker cover.
  • Tighten the air resonator clip (4) .
  • Connect the oil vapour rebreathing pipe (3) .
  • Refit:
    • the oil vapour rebreathing pipe clip (2) ,
    • the air resonator bolt on the rocker cover (1) .
  • Torque tighten the air resonator bolt on the rocker cover (6 N.m).

2 - FINAL OPERATION

  • Refit the engine cover.
