Renault Koleos Service Repair Manual: Front seat belt buckle: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Air bag and pretensioners / Front seat belt buckle: Removal - Refitting

Electrical equipment

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair (see 88C, Air bag and Pretensioners, Airbag and pretensioners: Precautions for the repair, page 88C-6) .

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners).

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Driver's side front seat belt buckle

Electrical equipment

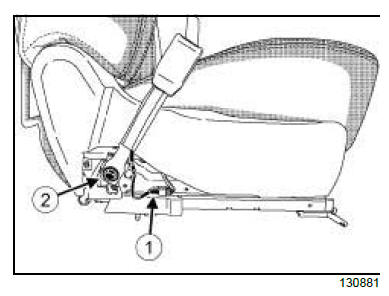

  • Disconnect the font seat belt buckle connector (1) .
  • Remove:
    • the bolt (2) from the front seat belt buckle,
    • the front seat belt buckle.

2 - Passenger side front seat belt buckle

  • Remove the flap and the storage compartment underneath the seat (see Storage compartment and flap under the seat: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

  • Disconnect the connector (3) from the passenger presence sensor.
  • Remove the clip (4) .

Electrical equipment

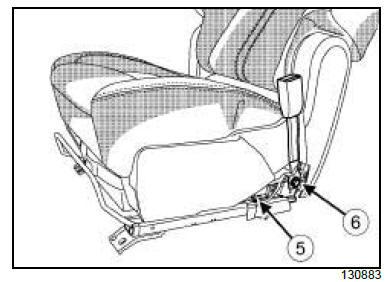

  • Disconnect the font seat belt buckle connector (5) .
  • Remove:
    • the bolt (6) from the front seat belt buckle,
    • the front seat belt buckle.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Driver's side front seat belt buckle

  • Refit the front seat belt buckle.

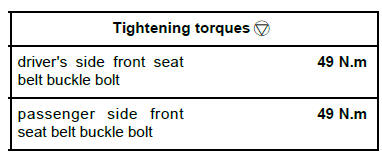

  • Torque tighten the driver's side front seat belt buckle bolt (49 N.m).
  • Connect the front seat belt stalk connector.

2 - Passenger side front seat belt buckle

  • Refit the front seat belt buckle.
  • Torque tighten the passenger side front seat belt buckle bolt (49 N.m).
  • Connect the front seat belt stalk connector.
  • Refit the clip.
  • Connect the connector for the passenger presence sensor.
  • Refit the flap and the storage compartment underneath the seat (see Storage compartment and flap under the seat: Removal - Refitting) (57A, Interior equipment).

II - FINAL OPERATION.

  • Refit the front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners).
