Renault Koleos Service Repair Manual: Tailgate opening switch: Removal - Refitting

Electrical equipment

Note: In case of an electrical fault, it is possible to open the tailgate manually.

Carry out this operation from inside the vehicle.

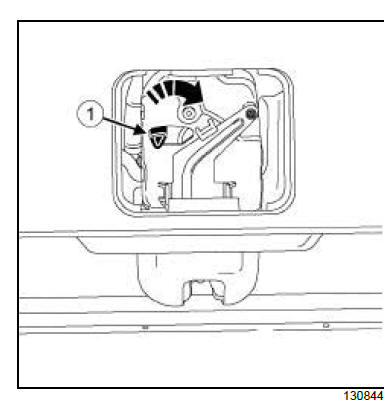

Unlock the tailgate by turning the fastener (1) in the direction of the arrow.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the tailgate lower trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

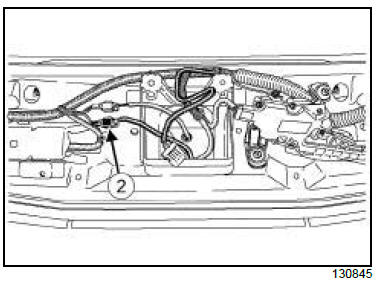

  • Disconnect the tailgate opening switch connector (2) .

Electrical equipment

Note: Carefully unclip the tailgate opening switch cover to avoid damaging it.

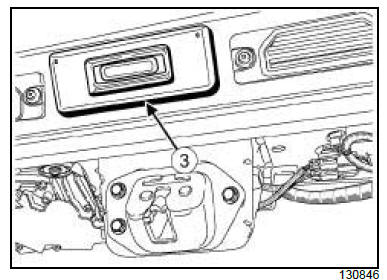

  • Separate the cover (3) from the tailgate opening switch.
  • Remove the tailgate opening switch assembly.

Electrical equipment

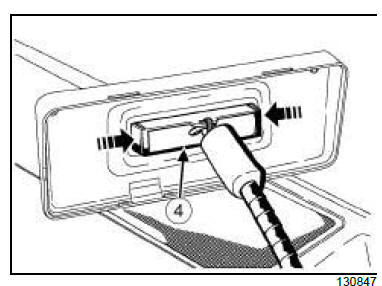

  • Unclip the tailgate opening switch (4) by pressing on the clips in the direction of the arrows.
  • Remove the tailgate opening switch from its support.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the tailgate opening switch cover.
  • Replace the cover if it is damaged.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the tailgate opening switch on the cover,
    • the tailgate opening switch assembly on the tailgate.
  • Connect the tailgate opening switch connector.

III - FINAL OPERATION.

  • Refit the tailgate lower trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).
