REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Switch on the ignition.
WARNING To ensure that the wiper arms can travel smoothly, the wiper motor must be initialised.
  • Turn the wiper stalk from (0) to (1), and then from (1) to (0).
  • Switch off the ignition.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the front wiper arms (see 85A, Wiping - Washing, Windscreen wiper arm: Removal - Refitting, page 85A-7) ,
    • the scuttle panel half-grille (see Scuttle panel half-grille: Removal - Refitting) (56A, Exterior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

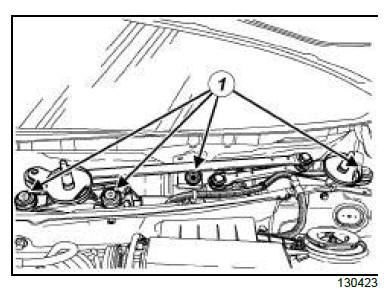

  • Remove the bolts (1) from the windscreen wiper mechanism.

Electrical equipment

  • Partially remove the windscreen wiper mechanism.

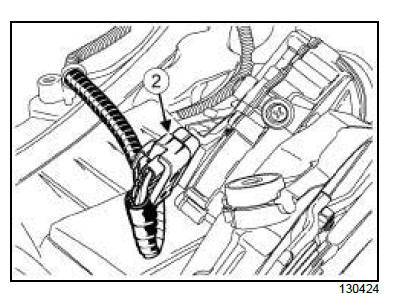

  • Disconnect the windscreen wiper motor connector (2) .
  • Remove the windscreen wiper mechanism.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the windscreen wiper motor connector.
  • Refit:
    • the windscreen wiper mechanism,
    • the windscreen wiper mechanism bolts.

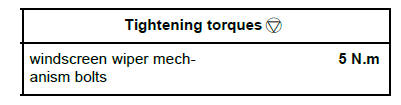

  • Torque tighten the windscreen wiper mechanism bolts (5 N.m).

II - FINAL OPERATION.

  • Refit the scuttle panel half-grille (see Scuttle panel half-grille: Removal - Refitting) (56A, Exterior equipment).
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Switch on the ignition.
WARNING To ensure that the wiper arms can travel smoothly, the wiper motor must be initialised.
  • Turn the wiper stalk from (0) to (1), and then from (1) to (0).
  • Switch off the ignition.
  • Refit the front wiper arms (see 85A, Wiping - Washing, Windscreen wiper arm: Removal - Refitting, page 85A-7) .

Windscreen wiper motor: Removal - Refitting

Electrical equipment

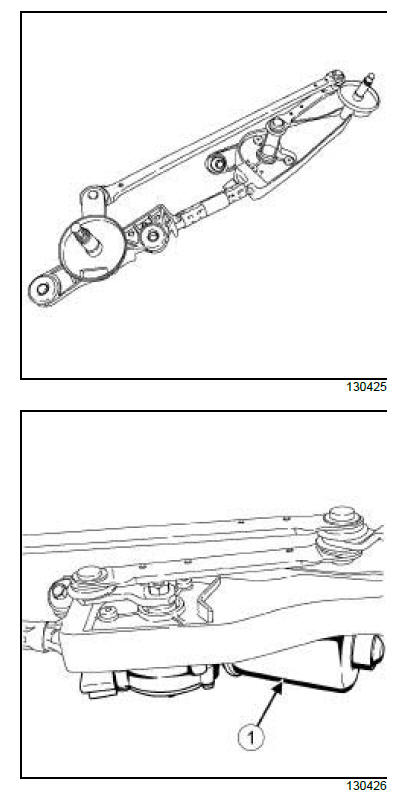

The windscreen wiper motor (1) is incorporated into the windscreen wiper mechanism (see 85A, Wiping - Washing, Windscreen wiper mechanism: Removal - Refitting, page 85A-9) .
