Renault Koleos Service Repair Manual: Hill descent control system: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Control - signals / Hill descent control system: Removal - Refitting

ELECTRONIC STABILITY PROGRAM 2

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

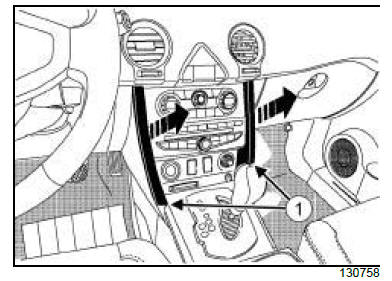

  • Remove the centre front panel side trim (1) .

Electrical equipment

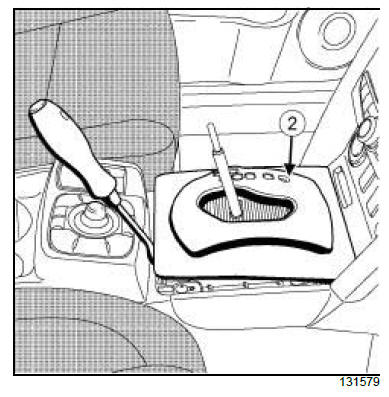

  • Remove the plate (2) from the gear lever (see Centre console: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

  • Remove:
    • the centre front panel lower covers (3) on both sides,
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

  • Remove:

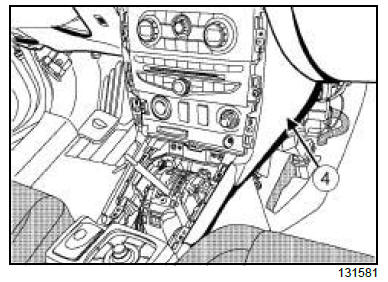

    • the centre front panel side trims (4) on both sides,
    • the CD multi-changer (see 86A, Radio, CD changer: Removal - Refitting, page 86A-14) ,
    • the radio (see 86A, Radio, Radio: Removal - Refitting, page 86A-4) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Remove:

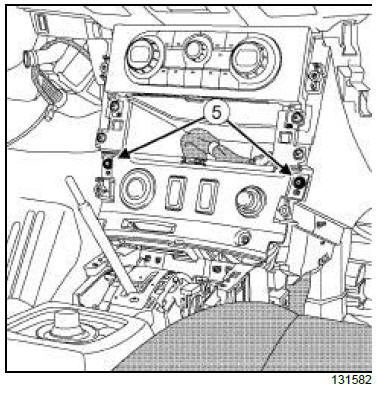

    • the starter control panel bolts (5) ,
    • the starter control panel.
  • Disconnect the connectors.

Electrical equipment

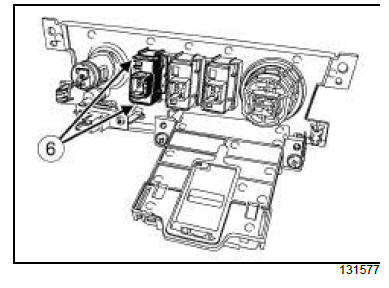

  • Unclip the clips (6) of the hill descent control switch.
  • Remove the hill descent control switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the hill descent control switch on the control panel.
  • Connect the connectors.
  • Refit:
    • the starter control panel,
    • the starter control panel bolts.

II - FINAL OPERATION.

  • Refit:
    • the radio (see 86A, Radio, Radio: Removal - Refitting, page 86A-4) ,
    • the CD multi-changer (see 86A, Radio, CD changer: Removal - Refitting, page 86A-14) ,
    • the centre front panel side trims on both sides,
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the centre front panel lower covers on both sides,
    • the gear lever plate (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the centre front panel side trim.
