REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Set the wheels straight ahead.
IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) ,
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly),
    • the rotary switch. (see 84A, Control - Signals, Rotary switch: Removal - Refitting, page 84A-2)

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

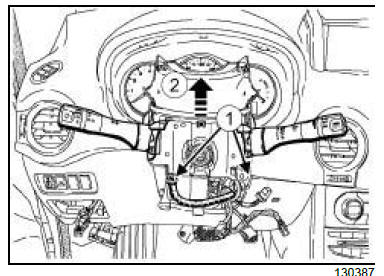

  • Disconnect the steering column switch assembly connectors (1) .
  • Remove the steering column switch assembly by pulling it in the direction of the arrow (2) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the steering wheel nut.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the steering column switch assembly.
  • Connect the steering column switch assembly connectors.

III - FINAL OPERATION.

  • Refit:
    • the rotary switch (see 84A, Control - Signals, Rotary switch: Removal - Refitting, page 84A-2) ,
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly),
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) .
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
