Renault Koleos Service Repair Manual: Steering wheel switch: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Cruise control / Steering wheel switch: Removal - Refitting

CRUISE CONTROL

REMOVAL

I - REMOVAL PREPARATION OPERATION

IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) ,
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Unclip the steering wheel rear cover clips (1) .
  • Remove the steering wheel rear cover (2) from the steering wheel.

Electrical equipment

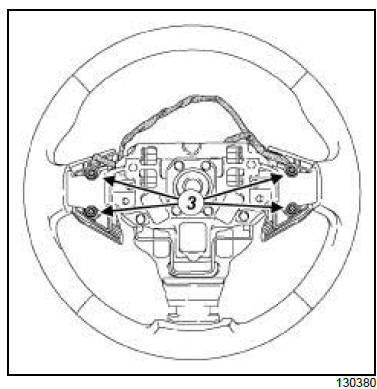

  • Remove:
    • the bolts (3) from the steering column switches,
    • the steering column switches.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the steering wheel nut.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the steering column switches,
    • the steering column switch bolts,
    • the steering wheel rear cover on the steering wheel.

III - FINAL OPERATION.

  • Refit:
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly),
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) .
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
    Switch: Removal - Refitting

    Control - signals
