WITHOUT DISCHARGE LAMPS

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the air inlet sleeve to access the left-hand headlight bulbs (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),
    • the windscreen washer bottle neck to access the right-hand headlight bulbs (see 85A, Wiping - Washing, Windscreen washer reservoir neck: Removal - Refitting, page 85A-26) (85A, Wiping - Washing).

II - REMOVAL OF PART CONCERNED

1 - Direction indicator bulb

Electrical equipment

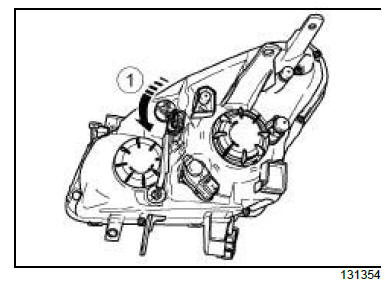

  • Remove the bulb holder by turning it a quarter of a turn anticlockwise (1) .

Electrical equipment

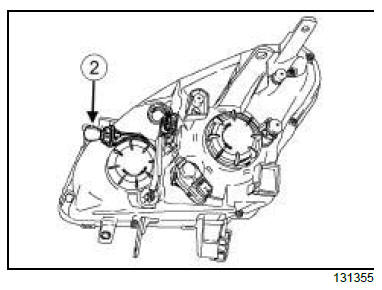

  • Remove the bulb (2) from the bulb holder.

2 - Side light bulb

Electrical equipment

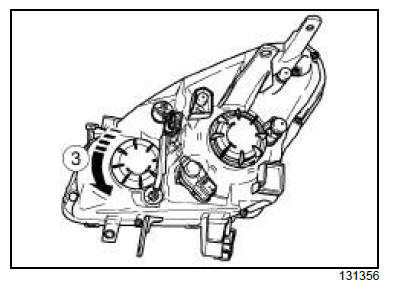

  • Remove the sealing cover by turning it a quarter of a turn anticlockwise (3) .

Electrical equipment

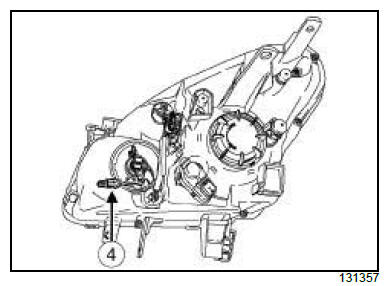

  • Remove the bulb (4) from the bulb holder.

3 - Main beam headlight bulbs

Electrical equipment

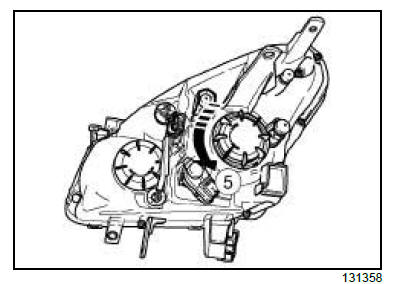

  • Remove the sealing cover by turning it a quarter of a turn anticlockwise (5) .

Electrical equipment

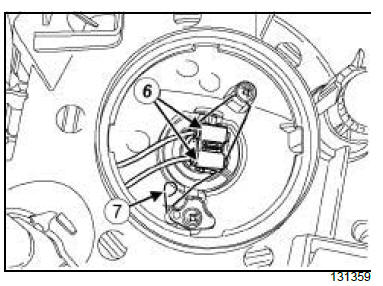

  • Disconnect the connector from the main beam headlight bulb (6) .
  • Unfasten clip (7) .
  • Remove the main beam headlight bulb.

4 - Dipped beam headlight bulb

Electrical equipment

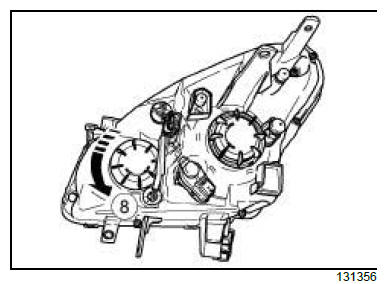

  • Remove the sealing cover by turning it a quarter of a turn anticlockwise (8) .

Electrical equipment

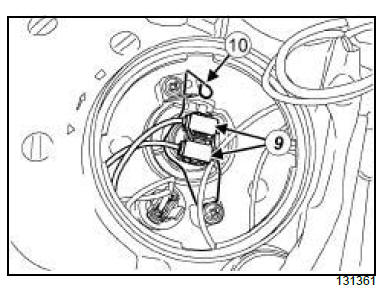

  • Disconnect the connector from the dipped beam headlight bulb (9) .
  • Unfasten the clip (10) .
  • Remove the dipped beam headlight bulb.

REFITTING

I - REFITTING PART CONCERNED

1 - Direction indicator bulb

  • Refit:
    • an approved PY21W bulb onto the direction indicator bulb holder,
    • the bulb holder on the headlight.
  • Turn the bulb holder a quarter of a turn clockwise.

2 - Side light bulb

  • Refit:
    • an approved W5W bulb onto the side light bulb holder,
    • the bulb holder on the headlight.
  • Refit the cover by turning it a quarter of a turn clockwise.

3 - Main beam headlight bulbs

  • Refit an approved H7 bulb on the headlight.
  • Clip the clip onto the headlight.
  • Connect the connector to the main beam headlight bulb.
  • Refit the cover by turning it a quarter of a turn clockwise.

4 - Dipped beam headlight bulb

  • Refit an approved H7 bulb on the headlight.
  • Clip the clip onto the headlight.
  • Connect the connector to the dipped beam headlight bulb.
  • Refit the cover by turning it a quarter of a turn clockwise.

II - FINAL OPERATION.

  • Refit:
    • the screen washer bottle filler neck (see 85A, Wiping - Washing, Windscreen washer reservoir neck: Removal - Refitting, page 85A-26) (12A, Washing - Wiping),
    • the air inlet sleeve (see Air filter unit: Removal - Refitting) (12A, Fuel mixture).

DISCHARGE LAMPS

REMOVAL

I - REMOVAL PREPARATION OPERATION

1 - Direction indicator light, side light and cornering light bulbs

  • Remove:
    • the air inlet sleeve to access the left-hand headlight bulbs (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),
    • the windscreen washer bottle neck to access the right-hand headlight bulbs (see 85A, Wiping - Washing, Windscreen washer reservoir neck: Removal - Refitting, page 85A-26) .

2 - Discharge bulb

IMPORTANT To prevent burns, wait until the " computers - power unit " assemblies are cold before removal.



IMPORTANT To prevent eye injuries:
  • do not look at a discharge bulb when lit (voltage when lit 20000 V),
  • do not light a bulb which has not been fitted into its headlight.
  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the headlight (see 80B, Headlights, Headlight: Removal - Refitting, page 80B-1) .

II - REMOVAL OF PART CONCERNED

1 - Direction indicator bulb

Electrical equipment

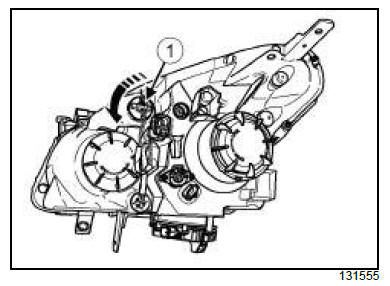

  • Remove the bulb holder (1) by turning it a quarter of a turn anticlockwise.

Electrical equipment

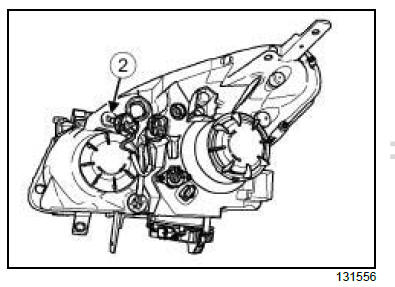

  • Remove the bulb (2) from the bulb holder.

2 - Side light bulbs

Electrical equipment

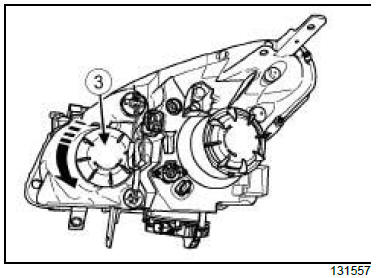

  • Remove the sealing cover (3) by turning it a quarter of a turn anticlockwise.

Electrical equipment

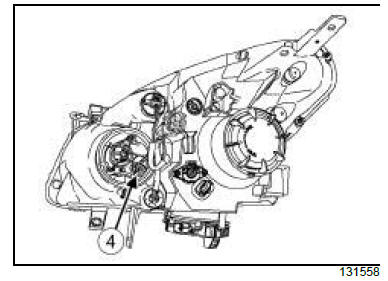

  • Remove the bulb (4) from the bulb holder.

3 - Cornering light bulb

Electrical equipment

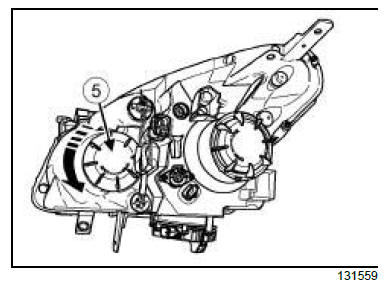

  • Remove the sealing cover (5) by turning it a quarter of a turn anticlockwise.

Electrical equipment

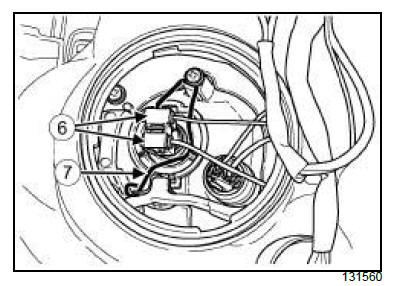

  • Disconnect the cornering light bulb (6) .
  • Unfasten clip (7) .
  • Remove the cornering light bulb.

4 - Discharge bulb

Electrical equipment

  • Remove the sealing cover (8) by turning it a quarter of a turn anticlockwise.

Electrical equipment

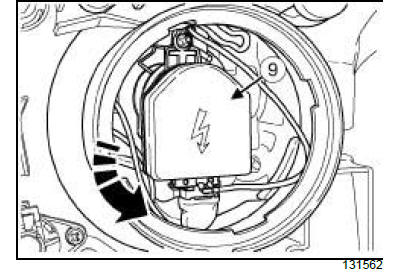

  • Remove the capacitor (9) by turning it anticlockwise.

Electrical equipment

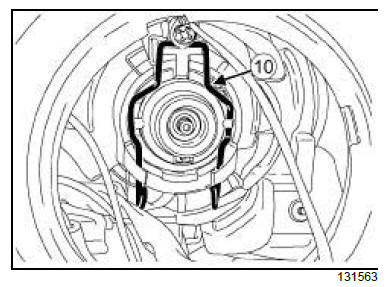

  • Unfasten clip (10) .
WARNING To prevent any breakages, handle the bulb by its base. If you should touch the glass, clean it with alcohol and a lint-free cloth.
  • Remove the bulb with caution, taking it by the neck.

REFITTING

I - REFITTING PART CONCERNED

1 - Direction indicator bulb

  • Refit:
    • an approved PY21W bulb in the direction indicator bulb holder,
    • the bulb holder on the headlight.
  • Turn the bulb holder a quarter of a turn clockwise.

2 - Cornering light bulb

  • Refit an approved H7 bulb on the headlight.
  • Clip the clip onto the headlight.
  • Connect the cornering light bulb connector.
  • Refit the cover by turning it a quarter of a turn clockwise.

3 - Xenon bulb

Electrical equipment

WARNING The bulb must be handled with care.

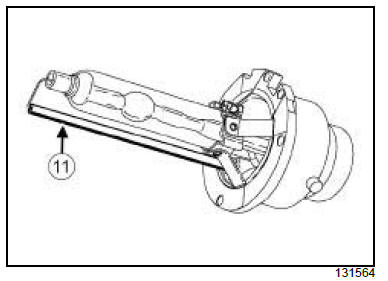

The external conductor (11) is very fragile and must not be damaged.

  • Refit an approved D2S bulb on the headlight.
  • Clip the clip onto the headlight.
  • Refit:
    • the capacitor by turning it clockwise,
    • the cover by turning it a quarter of a turn clockwise.

II - FINAL OPERATION.

1 - Direction indicator light, side light and cornering light bulbs

  • Refit:
    • the windscreen washer bottle neck to access the right-hand headlight bulbs (see 85A, Wiping - Washing, Windscreen washer reservoir neck: Removal - Refitting, page 85A-26) .
    • the air inlet sleeve to access the left-hand headlight bulbs (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),

2 - Xenon bulb

  • Refit:
    • the headlight (see 80B, Headlights, Headlight: Removal - Refitting, page 80B-1) .
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Adjust the headlights (see 80B, Headlights, Headlight: Adjustment, page 80B-3)
