Renault Koleos Service Repair Manual: Rear bench seat mechanism: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the rear bench seatback (see 76A, Rear seat frames and runners, Complete rear seat: Removal - Refitting, page 76A-1) ,
  • the luggage compartment floor lining (see 71A, Body internal trim, Luggage compartment floor lining: Removal - Refitting, page 71A-17) ,
  • the C-pillar lower trim (see 71A, Body internal trim, C-pillar lower trim: Removal - Refitting, page 71A-9) ,
  • the rear end panel lining (see 71A, Body internal trim, Rear end panel lining: Removal - Refitting, page 71A-16) ,
  • the rear floor carpet.

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove:
  • the bolts (1) ,
  • the relay nuts (2) ,
  • the clip (3) ,
  • the relay unit and the handle,
  • the cable.

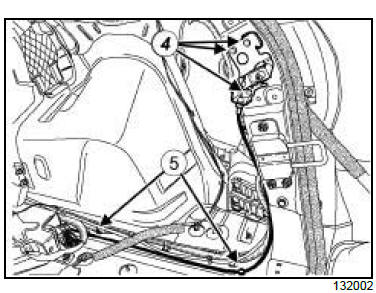

• Remove
  • the bolts (4) ,
  • the clips (5) ,
  • the lever unit,
  • the cable.

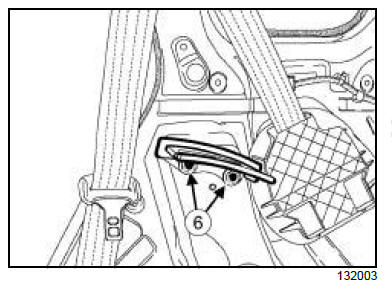

• Remove:
  • the bolts (6) of the rear bench seatback striker panel,
  • the rear bench seatback striker panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the rear bench seatback striker panel,
  • the bolts of the rear bench seatback striker panel.
• Torque tighten the bolts of the rear bench seatback striker panel (40 N.m).
• Refit:
  • the cable,
  • the lever unit,
  • the clips (5) ,
  • the bolts (4) ,
  • the cable,
  • the relay unit and the handle,
  • the clips (3) ,
  • the bolts (1) ,
  • the relay nuts (2) .
• Torque tighten the relay nuts (25 N.m).

II - FINAL OPERATION.

• Refit:
  • the rear floor carpet,
  • the rear end panel lining (see 71A, Body internal trim, Rear end panel lining: Removal - Refitting, page 71A-16) ,
  • the C-pillar lower trim (see 71A, Body internal trim, C-pillar lower trim: Removal - Refitting, page 71A-9) ,
  • the luggage compartment floor lining (see 71A, Body internal trim, Luggage compartment floor lining: Removal - Refitting, page 71A-17) ,
  • the rear bench seatback (see 76A, Rear seat frames and runners, Complete rear seat: Removal - Refitting, page 76A-1) ,
