Renault Koleos Service Repair Manual: Complete rear seat: Removal - Refitting

Rear seat frames and runners

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Rear seat frames and runners

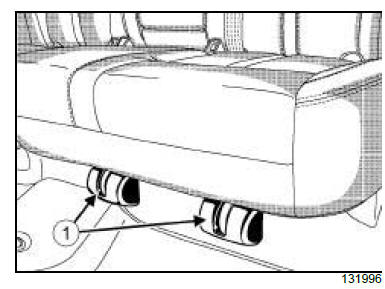

  • Remove the rear seat base hinge cover (1) .

Rear seat frames and runners

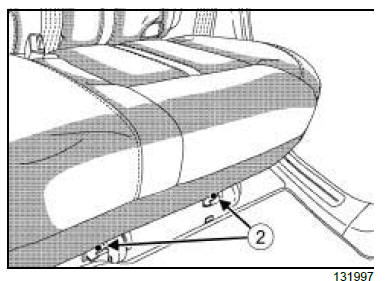

  • Remove the lower bolts (2) from the rear seat base.

Rear seat frames and runners

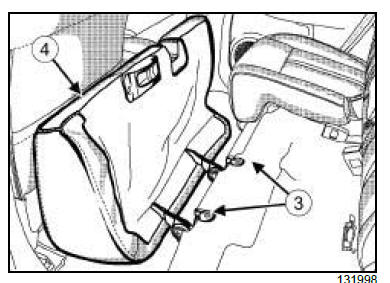

  • Tilt the rear seat base (4) .
  • Remove:
    • the rear seat base upper bolts (3) ,
    • the rear seat base (4) .

Rear seat frames and runners

  • Remove:
    • the side hinge cover,

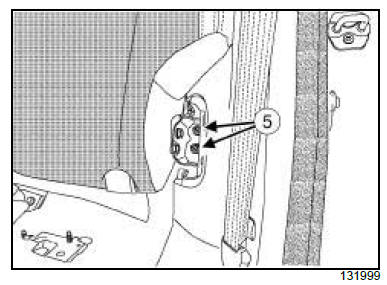

    • the seatback nuts (5) ,
    • the rear centre seat belt lower bolt.

Rear seat frames and runners

  • Remove:

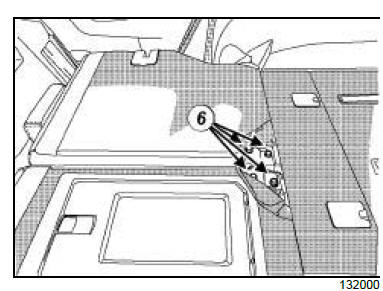

    • the seatback bolts (6) ,
    • the seatback.
Note: If the vehicle is equipped with the Easy Break system, partially remove the carpet in order to disconnect the cable from the control unit.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Fit the seatback.
  • Refit:
    • the seatback bolts,
    • the seatback nuts,
    • the rear centre seat belt lower bolt.
  • Torque tighten:
    • the seatback bolts (25 N.m),
    • the seatback nuts (25 N.m),
    • the lower bolt of the rear central seat belt (49 N.m).
  • Refit:
    • the side hinge cover,
    • the seat base,
    • the rear seat base upper bolts,
    • the rear seat base lower bolts.
Note: If the vehicle is equipped with the Easy Break system, reconnect the control unit cable.
  • Torque tighten:
    • the upper bolts of the rear seat base (28 N.m),
    • the lower bolts of the rear seat base (28 N.m).
  • Refit the rear seat base hinge cover.
Note: If the vehicle is equipped with the Easy Break system, check that the system is operating correctly.
    Rear seat frames and runners

    Rear bench seatback locking: Removal - Refitting
