Renault Koleos Service Repair Manual: Front seat frame: Removal - Refitting

Front seat frames and runners

IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 minutes after disconnecting the battery.



IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery : Removal - Refitting) (80A, Battery).
  • Remove:
    • the compete front seat (see 75A, Front seat frames and runners, Complete front seat: Removal - Refitting, page 75A-6) ,
    • the front seat belt buckle stalk (see Front seat belt buckle: Removal - Refitting) (88C, Airbag and pretensioners),
    • the head rest.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front seat frames and runners

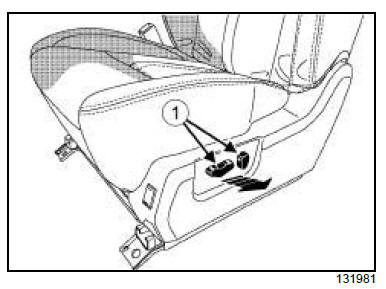

  • Remove the seat slide and the height adjuster switch (1) .

FRONT SEAT TYPE 01

Front seat frames and runners

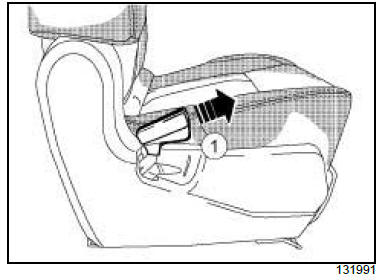

  • Remove the height adjuster lever (1) .

Front seat frames and runners

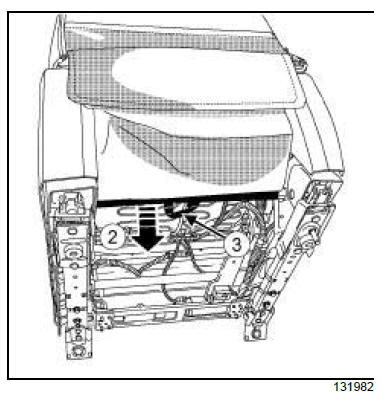

  • Unclip the seat trim (2) .
  • Remove the retaining strip (3) .

Front seat frames and runners

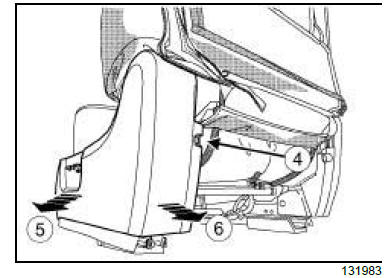

  • Remove the bolt (4) .
  • Unclip the trim at (5) and (6) .
  • Disconnect the power supply connector.

Front seat frames and runners

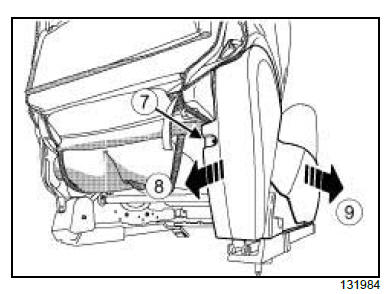

  • Remove the bolt (7) .
  • Unclip the trim at (8) and (9) .

Front seat frames and runners

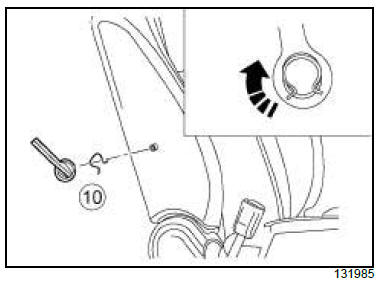

  • Remove the lumbar adjustment lever knob (10) .

Front seat frames and runners

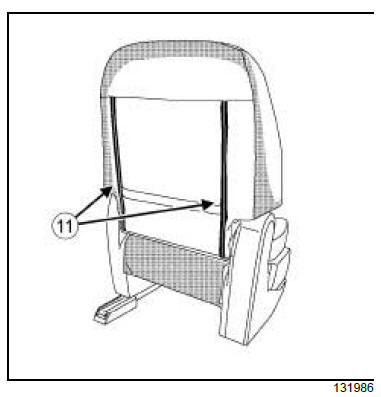

  • Open the zip fasteners (11) .

Front seat frames and runners

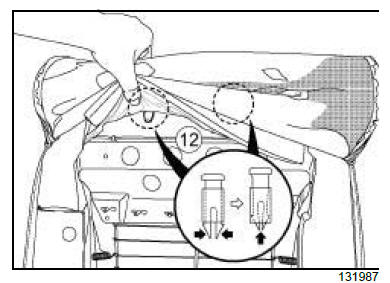

  • Remove the headrest guides from the support (12) .
  • Separate the airbag module from the fabric of the seatback trim.
  • Remove the seatback trim - foam assembly from the front seat frame.

Front seat frames and runners

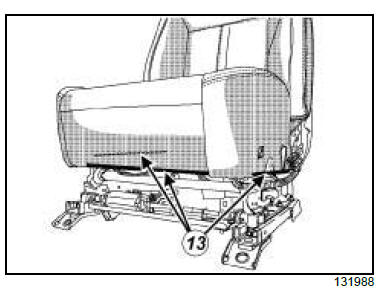

  • Unclip the seat base trim retaining sections (13) .

Front seat frames and runners

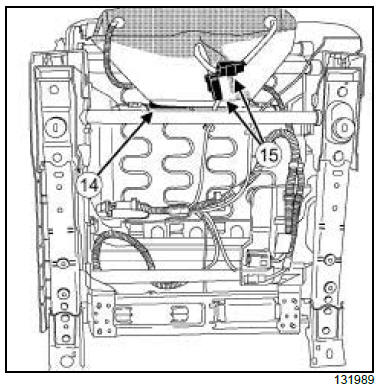

  • Unclip the retaining sections (14) .
  • Disconnect the connectors (15) .
  • Remove the seat base trim - foam assembly.

Front seat frames and runners

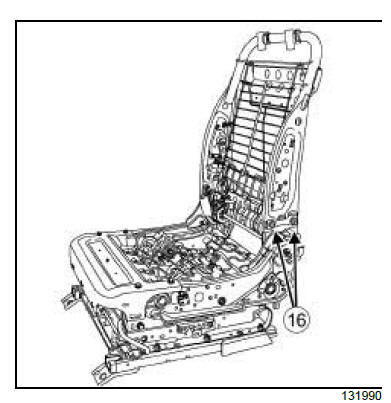

  • Remove:
    • the bolts (16) from the front seat frame on each side,
    • the front seat frame.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the front seat frame,
    • the front seat frame bolts.
  • Torque tighten the front seat frame bolts (49 N.m).
  • Refit the seat base trim - foam assembly.
  • Connect the connectors (15) .
  • Refit:
    • the retaining sections (14) ,
    • the seat base trim retaining sections (13) ,
    • the front side airbag (chest level) (see Front (chest) side airbag: Removal - Refitting) (88C, Airbag and pretensioners),
    • the headrest guides on the support (12) .
  • Close the zip fasteners.
  • Refit:
    • the lumbar adjustment lever knob,
    • the trim ,the bolts (7) ,
  • Connect the connectors.
  • Refit:
    • the trim ,
    • the bolt (4) ,
    • the retaining strips,
    • the trim (2) ,

FRONT SEAT TYPE 01

  • Refit the height adjustment lever.



  • Refit the seat slide and the height adjuster switch.

II - FINAL OPERATION.

  • Refit:
    • the front seat belt buckle stalk (see Front seat belt buckle: Removal - Refitting) (88C, Airbag and pretensioners),
    • the headrest,
    • the entire front seat (see 75A, Front seat frames and runners, Complete front seat: Removal - Refitting, page 75A-6) .
  • Connect the battery (see Battery : Removal - Refitting) (80A, Battery).
    Front seat frames and runners
