Renault Koleos Service Repair Manual: Dashboard air vent: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Interior equipment / Dashboard air vent: Removal - Refitting

IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 minutes after disconnecting the battery.



IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove the dashboard (see 57A, Interior equipment, Dashboard: Removal - Refitting, page 57A- 1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Interior equipment

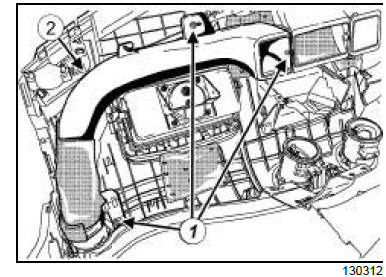

  • Remove:
    • the bolts (1) ,
    • the air duct (2) .

Interior equipment

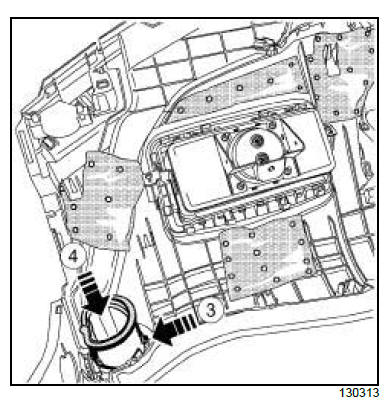

  • Press on the clips at (3) and (4) .
  • Remove the side air vent.

Interior equipment

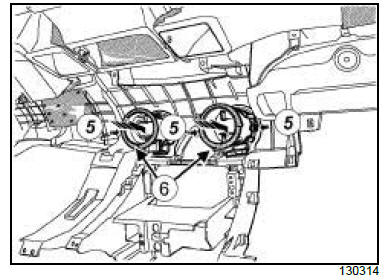

  • Press on both sides of the clips at (5) .
  • Remove the centre air vent (6) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the centre air vent,
    • the side air vent,
    • air duct ,
    • the bolts.

II - FINAL OPERATION.

  • Refit the dashboard (see 57A, Interior equipment, Dashboard: Removal - Refitting, page 57A-1) .
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).

Glovebox: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Interior equipment

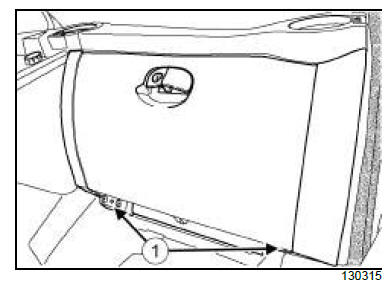

  • Remove the lower bolts (1) .

Interior equipment

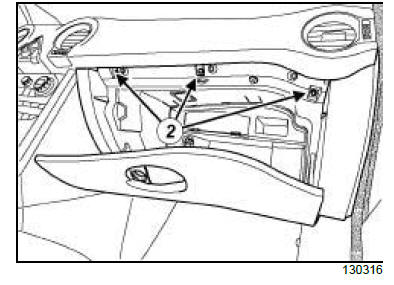

  • Remove the upper bolts (2) .
  • Take out the glovebox.
  • Disconnect the connectors.
  • Remove the glovebox.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Connect the connectors.
  • Refit:
    • the glovebox,
    • the upper bolts,
    • the lower bolts.
