Renault Koleos Service Repair Manual: Rear quarter panel window: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
  • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
  • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Protect the edge of the rear quarter panel window using masking tape.
• Pierce the cement bead using a cutting wire in the rear section.
• Begin cutting the cement bead.

REFITTING

I - OPERATION FOR PREPARATION OF PART CONCERNED

• Replace the seal (1) if necessary.
• For the preparation and the bonding (see Window bonding: Description) (Technical Note 560A, Windows).

II - REFITTING OPERATION FOR PART CONCERNED

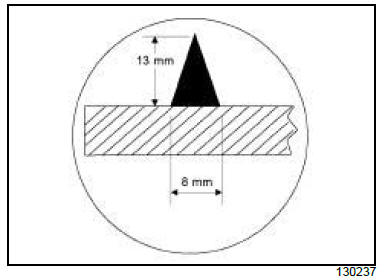

• Use the correct size of cement bead.

• Bond the rear quarter panel window.

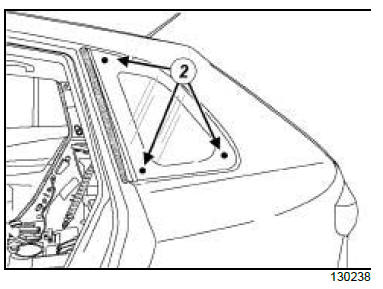

• Refit the rear quarter panel window with the clips (2) .
• Balance the adjustments and shut the lines.

III - FINAL OPERATION

• Refit:
  • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim),
  • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
  • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim).
