Windows

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Windows

  • Remove the front side door seal cover.

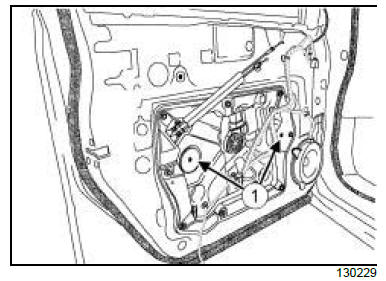

  • Lower the window to access the sliding window bolts (1) .
  • Remove the bolts (1) .

Windows

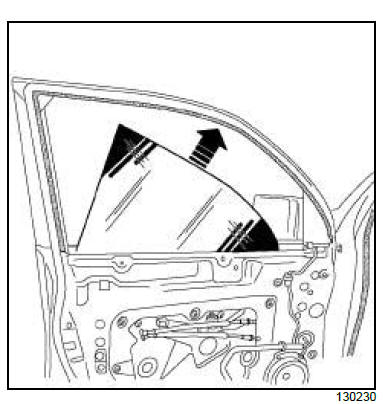

  • Remove the front side door sliding window.

REFITTING

I - REFITTING PREPARATION OPERATION

Note: When replacing the front side door sliding window, refit the window mountings.
  • Clean using HEPTANE (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products).
  • Wipe the bonding area of the window mountings using a LINT-FREE CLOTH (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products).

Windows

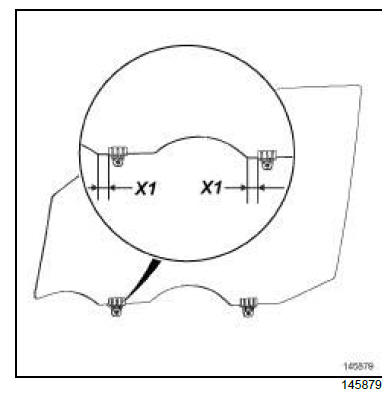

  • Bond the window mountings in the position shown in the diagram.

    (X1) = 28 mm

  • Leave to dry for at least 10 minutes.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the front side door sliding window glass.

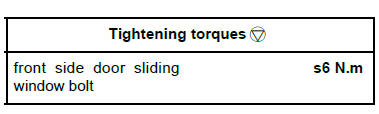

  • Torque tighten the front side door sliding window bolt (s6 N.m) (1) .
  • Refit the front side door seal cover.

III - FINAL OPERATION

  • Carry out a function test.
  • Refit the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim).
