Renault Koleos Service Repair Manual: Windscreen: Removal - Refitting

Windows

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the windscreen pillar trim (see Windscreen pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the interior rear-view mirror (see 57A, Interior equipment, Interior rear-view mirror: Removal - Refitting, page 57A-18) (57A, Interior equipment),
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing),
    • the scuttle panel grille (see Scuttle panel grille: Removal - Refitting) (56A, Exterior equipment).

Windows

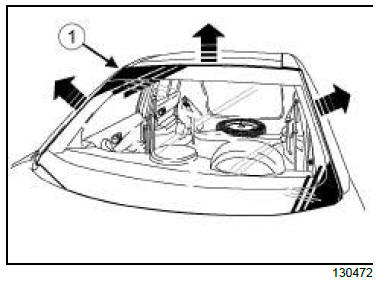

  • Remove the windscreen trim (1) .
  • Fit the universal protector (Car. 1847).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Windows

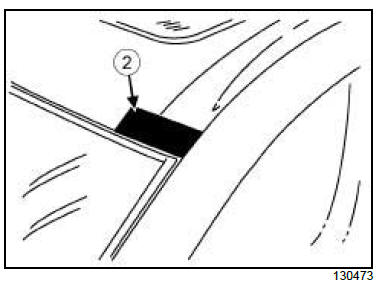

  • Protect the windscreen perimeter using masking tape (2) .

Windows

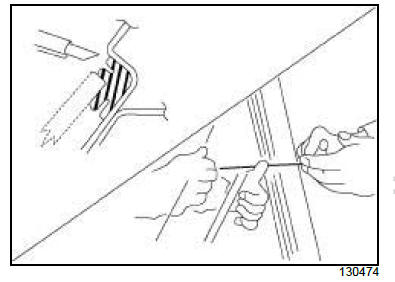

  • Begin cutting the cement bead.

REFITTING

I - REFITTING PREPARATIONS OPERATION

  • Position the two side positioning shims.
  • Refit the rubber stop.
  • For the preparation and the bonding (see Window bonding: Description) (Technical Note 560A, 54A, Windows).

II - REFITTING OPERATION FOR PART CONCERNED

Note: Always use high modulus adhesive to bond the rear window.

Windows

  • Refit the windscreen (this operation requires two people).

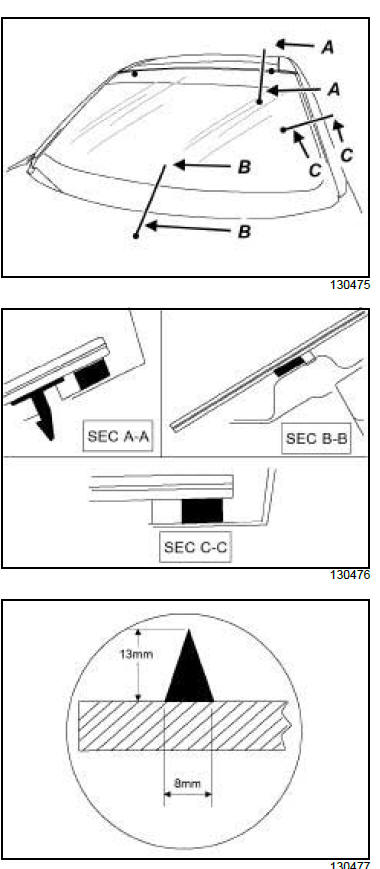

  • Respect the following clearances and shut lines:
    • windscreen - roof,
    • windscreen - A-pillar.

III - FINAL OPERATION.

Windows

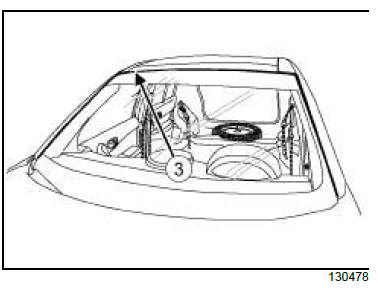

  • Clip the trim piece in place (3) .
  • Refit:
    • the scuttle panel grille (see Scuttle panel grille: Removal - Refitting) (56A, Exterior equipment),
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing),
    • the interior rear-view mirror (see 57A, Interior equipment, Interior rear-view mirror: Removal - Refitting, page 57A-18) (57A, Interior equipment),
    • the windscreen pillar trim (see Windscreen pillar trim: Removal - Refitting) (71A, Body internal trim).
