Renault Koleos Service Repair Manual: Sunroof: Removal - Refitting

ELECTRICAL SUNROOF + FIXED REAR SECTION

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the roof bar (see 56A, Exterior equipment, Roof bar: Removal - Refitting, page 56A-8) (56A, Exterior equipment),
    • the sunroof mobile panel (see 52A, Non-side opening element mechanisms, Sunroof mobile panel: Removal - Refitting, page 52A-12) (Non-side opening element mechanisms),
    • the sunroof deflector (see 52A, Non-side opening element mechanisms, Sunroof deflector: Removal - Refitting, page 52A-13) (Non-side opening element mechanisms),
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim),
    • the sunroof opening motor (see Sunroof opening motor: Removal - Refitting) (87A, Electric windows - Sunroof),
    • the sunroof sunblind (see 52A, Non-side opening element mechanisms, Sunroof sunblind: Removal - Refitting, page 52A-14) (Non-side opening element mechanisms),
    • the sunblind of the fixed glass roof (see 52A, Non-side opening element mechanisms, Fixed glass roof sunblind: Removal - Refitting, page 52A- 17) (Non-side opening element mechanisms).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

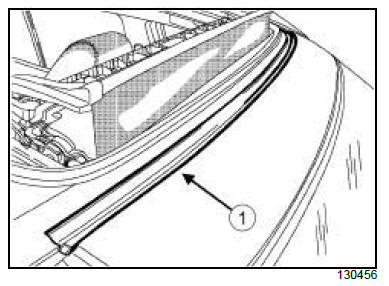

  • Detach the seal (1) .
Note: Whenever a used seal is removed, refit a new seal from the refitting kit available from the Parts Department.

Non-side opening element mechanisms

  • Remove:

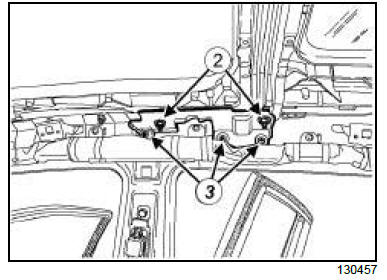

    • the nuts (2) ,
    • the bolts (3) .

Non-side opening element mechanisms

  • Remove:

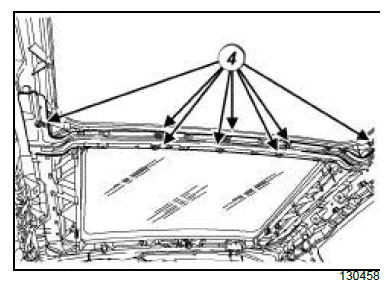

    • the bolts (4) ,
    • the side panel.
  • Cut the cement bead around the edge of the sunroof operating mechanism (this operation requires two people).

Non-side opening element mechanisms

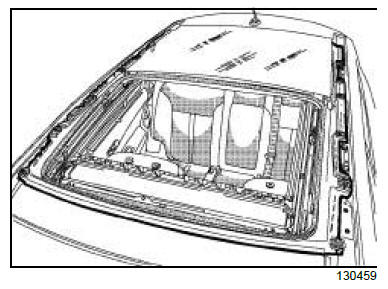

  • Remove the sunroof operating mechanism.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • For the preparation and the bonding (see Bonding sunroof operating mechanisms: Description) (Technical Note 560A, 54A, Windows).
  • Position the shims around the edge of the sunroof operating mechanism.
  • Fit the sunroof operating mechanism.
  • Equal out the clearances and shut lines.

II - FINAL OPERATION.

  • Refit:
    • the sunblind of the fixed glass roof (see 52A, Non-side opening element mechanisms, Fixed glass roof sunblind: Removal - Refitting, page 52A- 17) (Non-side opening element mechanisms),
    • the sunroof sunblind (see 52A, Non-side opening element mechanisms, Sunroof sunblind: Removal - Refitting, page 52A-14) (Non-side opening element mechanisms),
    • the sunroof opening motor (see Sunroof opening motor: Removal - Refitting) (87A, Electric windows - Sunroof),
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim),
    • the sunroof deflector (see 52A, Non-side opening element mechanisms, Sunroof deflector: Removal - Refitting, page 52A-13) (Non-side opening element mechanisms),
    • the sunroof mobile panel (see 52A, Non-side opening element mechanisms, Sunroof mobile panel: Removal - Refitting, page 52A-12) (Non-side opening element mechanisms),
    • the roof bar (see 56A, Exterior equipment, Roof bar: Removal - Refitting, page 56A-8) (56A, Exterior equipment).

Sunroof opening control: Removal - Refitting

ELECTRICAL SUNROOF + FIXED REAR SECTION

Non-side opening element mechanisms

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Remove the sunroof opening control (1) using the tool (Car. 1597).

Non-side opening element mechanisms

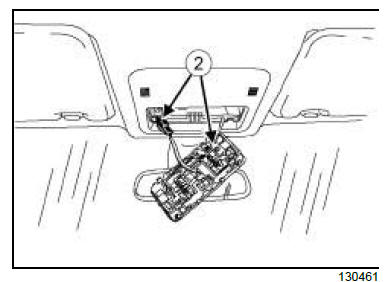

  • Disconnect the connectors (2) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Connect the connectors.
  • Refit the sunroof opening control.
    Tailgate exterior opening control: Removal - Refitting

    Sunroof mobile panel: Removal - Refitting
