Renault Koleos Service Repair Manual: Front: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection),
    • the bonnet (see 48A, Non-side opening elements, Bonnet: Removal - Refitting, page 48A- 1) ,
    • the air inlet sleeve (see Heating resistor relays: Removal - Refitting) (61A, Heating),
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the radiator upper grille,
    • the headlights (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the audible warning (see Horn: Removal - Refitting) (82B, Horn).

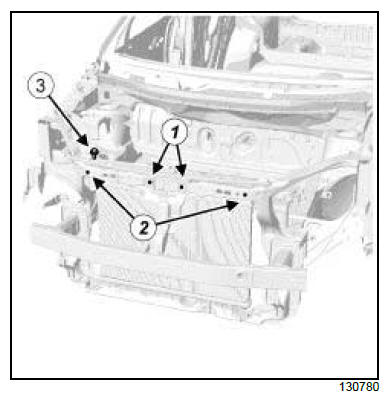

Front upper structure

  • Remove:
    • the bolts (1) from the radiator central mounting,
    • the bolts (2) from the air deflector,
    • the front impact cross member (see 41A, Front lower structure, Front impact cross member: Removal - Refitting, page 41A-2) ,
    •  the cooling radiator (see Cooling radiator: Removal - Refitting) (19A, Cooling system),
    •  the expansion bottle (see Expansion bottle: Removal - Refitting) (19A, Cooling system),
    • the bonnet switch bolt (3) .
  • Disconnect the engine wiring.

II - OPERATION FOR REMOVAL OF PART CONCERNED

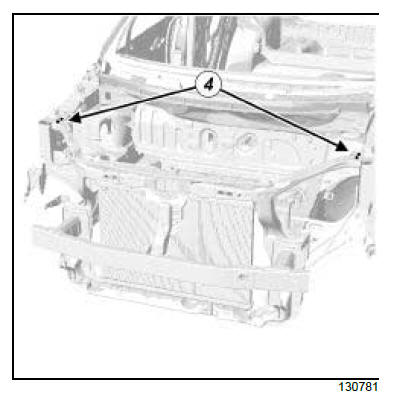

Front upper structure

  • Remove the front bolts (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the front bolts (4) .

II - FINAL OPERATION

  • Connect the engine wiring.
  • Refit:
    • the bonnet switch bolt (3) ,
    • the expansion bottle (see Expansion bottle: Removal - Refitting) (19A, Cooling system),
    • the cooling radiator (see Cooling radiator: Removal - Refitting) (19A, Cooling system),
    • the front impact cross member (see 41A, Front lower structure, Front impact cross member: Removal - Refitting, page 41A-2) ,
    • the bolts (2) from the air deflector,
    • the bolts (1) from the radiator central mounting,
    • the audible warning (see Horn: Removal - Refitting) (82B, Horn),
    • the headlights (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the radiator upper grille,
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the air inlet sleeve (see Heating resistor relays: Removal - Refitting) (61A, Heating),
    • the bonnet (see 48A, Non-side opening elements, Bonnet: Removal - Refitting, page 48A- 1) ,
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection),
    • the front wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres).
