REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • partially the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection),
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the headlight (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the windscreen washer pipe.

II - OPERATION FOR REMOVAL OF PART CONCERNED

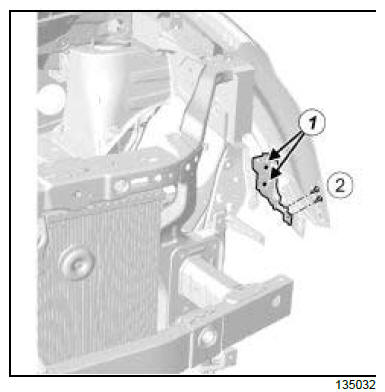

Front upper structure

  • Remove:
    • the nuts (1) ,
    • the bolts (2) ,
    • the front wing lower mounting.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the front wing lower mounting,
    • the bolts (2) ,
    • the nuts (1) .

II - FINAL OPERATION

  • Refit:
    • the windscreen washer pipe,
    • the headlight (see Front headlight: Removal - Refitting) (80B, Headlights),
    • the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection),
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).

Front: General description

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading the following general information, make sure that there are no special notes associated with the vehicle. These special notes are specified if necessary in other parts of the sub-section dealing with the component

DESIGN OF THE STRUCTURAL COMPONENT

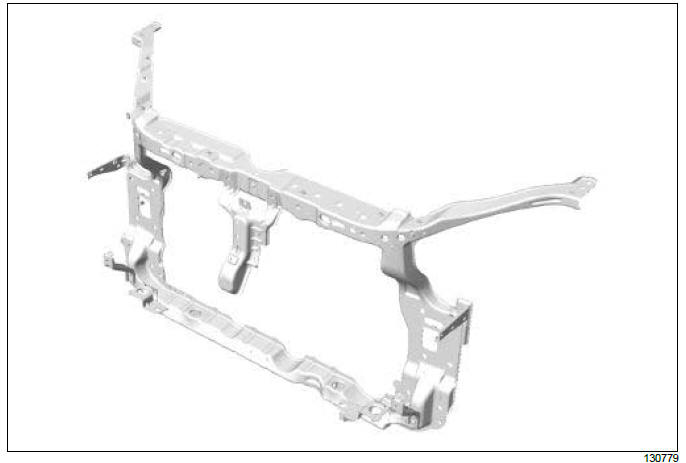

Front upper structure

A special feature of this part is that it is made out of composite materials; it cannot be repaired and is bolted onto the vehicle.

This part is attached to the ends of the front side member and cannot be adjusted.

    Front wing: Removal - Refitting

    Front: Removal - Refitting
