Renault Koleos Service Repair Manual: Front side member, central section: General description

Renault Koleos Service Repair Manual / Panelwork / Front lower structure / Front side member, central section: General description

WARNING The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes are specified if necessary in other parts of the sub-section dealing with the component.

Note: For a detailed description of a particular connection, see MR 400, 40A, General Information.

DESIGN OF THE STRUCTURAL COMPONENT

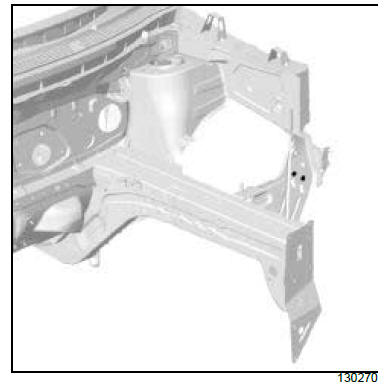

Front lower structure

This is a basic part; its only function is that of front side member, centre section.

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

Front side member, central section: Description

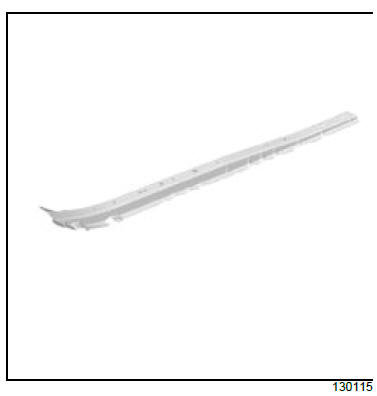

Front lower structure

There is only one way of replacing this part:

complete replacement.

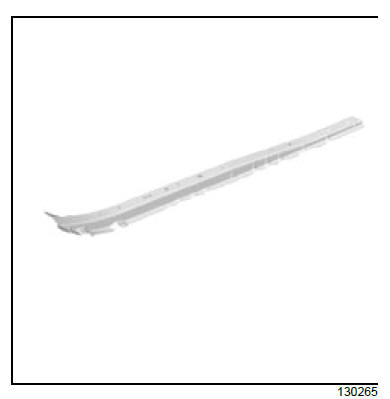

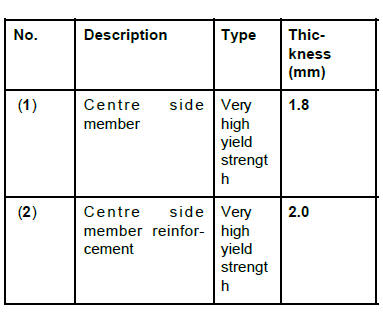

I - COMPOSITION OF THE SPARE PART

Front lower structure

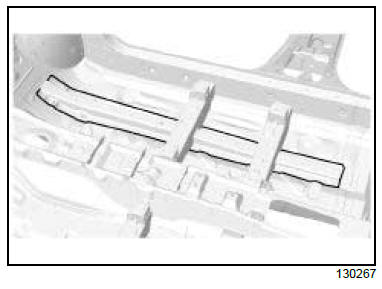

II - PART FITTED

Front lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

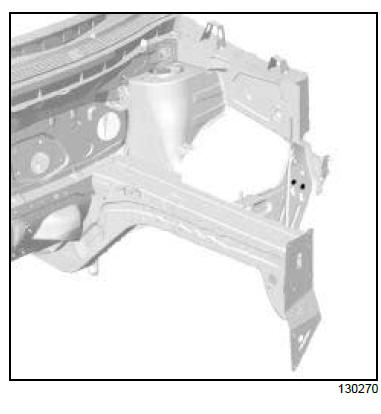

Front lower structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the earth of the welding machine as closely as possible to the weld area (see MR 400).

Front side member, rear section: Description

There is only one way of replacing this part:

complete replacement.

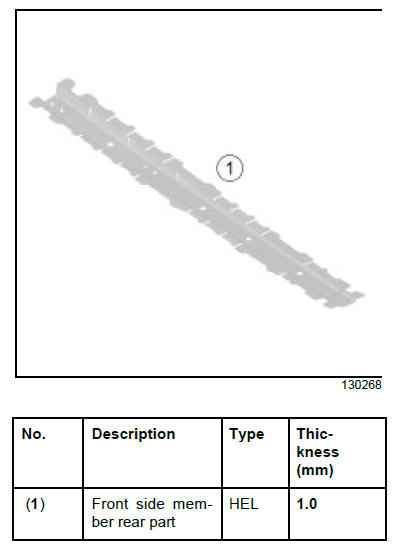

I - COMPOSITION OF THE SPARE PART

Front lower structure

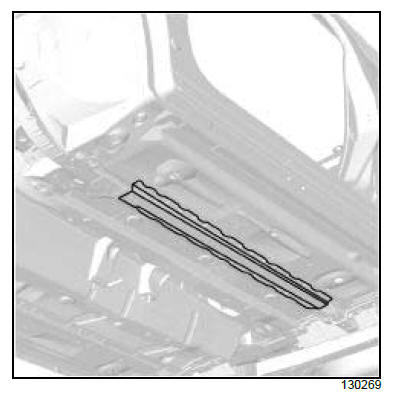

II - PART FITTED

Front lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Front lower structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the earth of the welding machine as closely as possible to the weld area (see MR 400).

Front section of front side member closure panel: Description

Sub-frame rear mounting: General description
