REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) ,
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).

II - OPERATION FOR REMOVAL OF PART CONCERNED

WARNING To avoid damaging the wheel speed sensor cable:
  • Do not tension the cable,
  • Do not twist the cable,
  • Check that there is no contact with the surrounding components,
  • Do not use tools that may damage the cable.

Anti-lock braking system

  • Remove:
    • the front wheel speed sensor bolt (1) ,
    • the front wheel speed sensor.

Anti-lock braking system

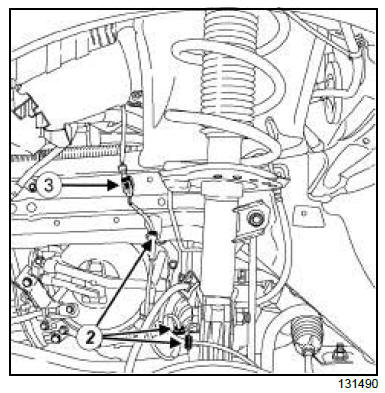

  • Unclip the front wheel speed sensor cable at (2) .
  • Disconnect the connector (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the front wheel speed sensor connector.
  • Clip on the front wheel speed sensor cable.
  • Refit the front wheel speed sensor.
  • Torque tighten the front wheel speed sensor bolt (10 N.m).

II - FINAL OPERATION.

  • Refit:
    • the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection),
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
