REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres),
    • the front brake hose (see 31A, Front axle components, Front brake hose: Removal - Refitting, page 31A-3) .
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front brake calliper (see 31A, Front axle components, Front brake calliper: Removal - Refitting, page 31A-5) ,
    • the front brake calliper mounting (see 31A, Front axle components, Front brake calliper mounting: Removal - Refitting, page 31A-9) ,
    • the brake disc (see 31A, Front axle components, Front brake disc: Removal - Refitting, page 31A- 13) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

WARNING In order to prevent irreversible damage to the front hub bearing:
  • Do not loosen or tighten the driveshaft nut when the wheels are on the ground.
  • Do not place the vehicle with its wheels on the ground when the driveshaft has been loosened or removed.

Front axle components

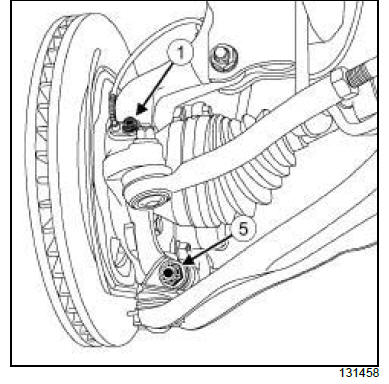

  • Remove:
    • the wheel speed sensor bolt (1) ,
    • the wheel speed sensor.

Front axle components

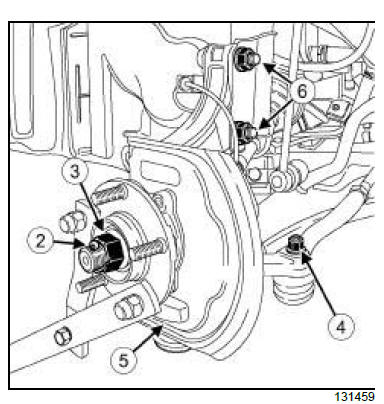

  • Remove:
    • the driveshaft cotter pin (2) ,
    • the nut (3) from the hub using the (Rou. 604-01),
    • the track rod ball joint nut (4) ,
    • the lower arm ball joint nut (5) ,
    • the shock absorber lower nuts (6) .
  • Remove the driveshaft from the hub carrier using the (Tav. 1420-01) and (Tav. 1050-04), if necessary.

Front axle components

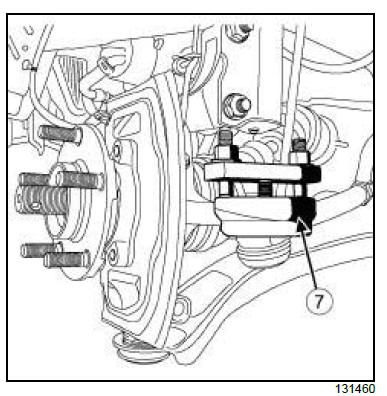

  • Extract the track rod end using the (Tav. 476) (7) .
  • Remove:
    • the lower arm ball joint,
    • the front driveshaft hub carrier.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Refit:
    • the driveshaft on the hub carrier,
    • the lower arm ball joint on the hub carrier,
    • the track rod on the hub carrier,
    • the shock absorber lower bolts and nuts,
    • the lower arm ball joint nut,
    • the track rod ball joint nut,
    • the hub nut,
    • the driveshaft cotter pin,
    • the wheel speed sensor,
    • the wheel speed sensor bolt.

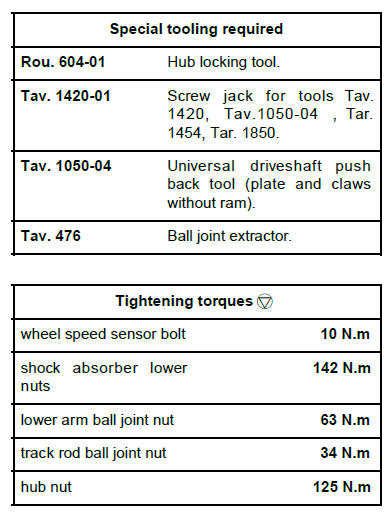

  • Torque tighten:
    • the wheel speed sensor bolt (10 N.m),
    • the shock absorber lower nuts (142 N.m),
    • the lower arm ball joint nut (63 N.m),
    • the track rod ball joint nut (34 N.m),
    •  the hub nut (125 N.m), using the (Rou. 604-01).

II - FINAL OPERATION.

  • Refit:
    • the brake disc (see 31A, Front axle components, Front brake disc: Removal - Refitting, page 31A- 13) ,
    • the front brake calliper mounting (see 31A, Front axle components, Front brake calliper mounting: Removal - Refitting, page 31A-9) .
    • the front brake calliper (see 31A, Front axle components, Front brake calliper: Removal - Refitting, page 31A-5) ,
    • the front brake pad (see 31A, Front axle components, Front brake pads: Removal - Refitting, page 31A-1) ,
    • the front brake hose (see 31A, Front axle components, Front brake hose: Removal - Refitting, page 31A-3) .
    • the front wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) (35A, Wheels and tyres).
  • Check the front axle geometry (see 30A, General information, Front axle system: Adjustment, page 30A-11) (30A, General information).
