Renault Koleos Service Repair Manual: Rear axle system: Adjustment

General information

I - ADJUSTMENT VALUES

Note: Measure the value unladen. Unladen means that the fuel tank and the engine and oil coolant reservoirs are full. The emergency spare wheel, jack, hand tools and carpets are in place.

II - ADJUSTMENT

  • Before checking the axle assemblies on the test bench, check the tyre inflation pressure (see 35A, Wheels and tyres, Tyre pressure: Identification, page 35A-8) (35A, Wheels and tyres).

1 - Camber

General information

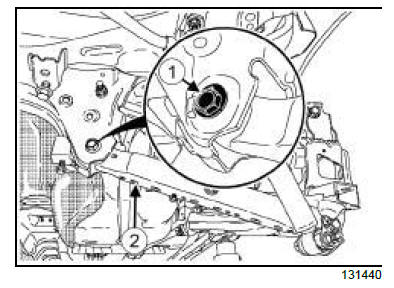

  • If the camber exceeds the adjustment value, adjust it using the adjusting screw (1) on the lower trailing link (2) .

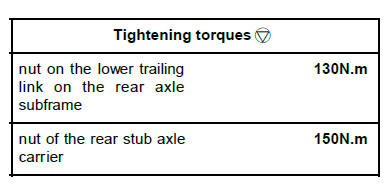

  • After adjusting, torque tighten the nut on the lower trailing link on the rear axle subframe (130N.m).
Note: After the adjustment, remember to check the toe-in.

2 - Toe-in

General information

  • If the toe-in exceeds the adjustment value, adjust it using the adjusting screw (3) on the rear stub axle carrier (4) .
  • After the adjustment, torque tighten the nut of the rear stub axle carrier (150N.m).
    Rear axle assembly: Adjustment values
