Renault Koleos Service Repair Manual: Multifunction switch: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Automatic gearbox / Multifunction switch: Removal - Refitting

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Shift the gear lever to Neutral.
  • Remove:
    • the air inlet sleeve
    • the battery
    • the battery tray.

Automatic gearbox

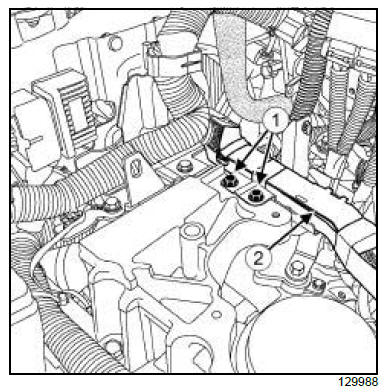

  • Remove the bolts (1) from the engine wiring harness channel.
  • Remove the wiring harness channel (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

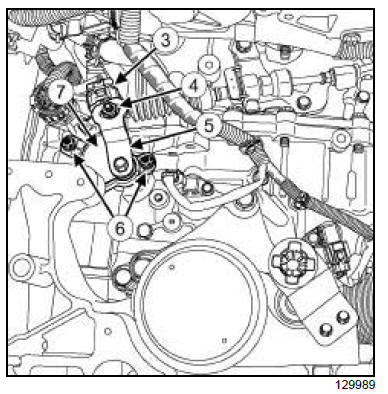

  • Disconnect the multifunction switch connector (3) .
  • Remove the nut (4) from the control cable.
  • Disconnect the control cable from the multifunction switch control lever (5) .
  • Remove:
    • the multifunction switch bolts (6) ,
    • the multifunction switch (7) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the multifunction switch,
    • the multifunction switch bolts.
  • Adjust the multifunction switch .

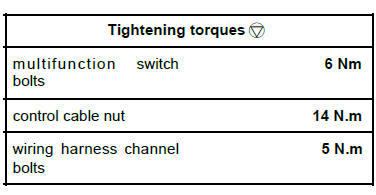

  • Torque tighten the multifunction switch bolts (6 Nm).
  • Connect the multifunction switch connector.
  • Refit:
    • the control cable on the multifunction switch control lever,
    • the control cable nut.
  • Torque tighten the control cable nut (14 N.m).

II - FINAL OPERATION.

  • Refit:
    • the engine wiring harness channel,
    • the engine wiring harness channel bolts.
  • Torque tighten the wiring harness channel bolts (5 N.m).
  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Shift the gear lever to Neutral.
  • Remove:
    • the air inlet sleeve
    • the battery
    • the battery tray

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

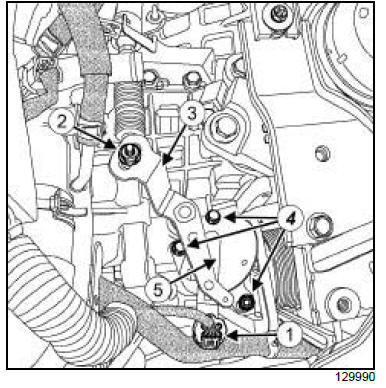

  • Disconnect the multifunction switch connector (1) .
  • Remove the nut (2) from the control cable.
  • Disconnect the control cable from the multifunction switch control lever (3) .
  • Remove:
    • the multifunction switch bolts (4) ,
    • the multifunction switch (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the multifunction switch,
    • the multifunction switch bolts.
  • Adjust the multifunction switch.

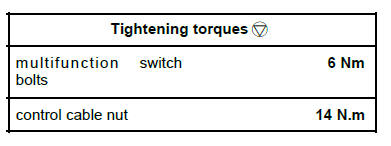

  • Torque tighten the multifunction switch bolts (6 Nm).
  • Connect the multifunction switch connector.
  • Refit:
    • the control cable on the multifunction switch control lever,
    • the control cable nut.
  • Torque tighten the control cable nut (14 N.m).

II - FINAL OPERATION.

  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve .
