2TR

Petrol injection

Note: Take care not to damage the heated oxygen sensor.

Scrap any heated oxygen sensors that may have fallen on a hard surface such as a concrete floor.

Replace the oxygen sensor if necessary.

Note: Before fitting a new heated oxygen sensor, clean the threading on the exhaust pipe using the cleaner for heated oxygen sensor threading and apply anti-seize lubricant (standard maintenance product).

Never exceed the tightening torque of the heated oxygen sensors.

REMOVAL

I - REMOVAL PREPARATION OPERATION

Position the vehicle on a two-post lift .
Disconnect the battery.
Remove the engine undertray.

II - OPERATION FOR REMOVAL OF PART CONCERNED

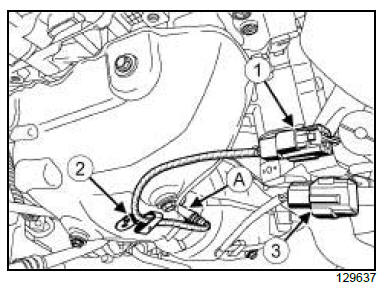

1 - UPSTREAM OXYGEN SENSOR (A)

Petrol injection

Disconnect the upstream oxygen sensor connector (1) .
Unclip the wiring of the upstream oxygen sensor from the heat shield at (2) .

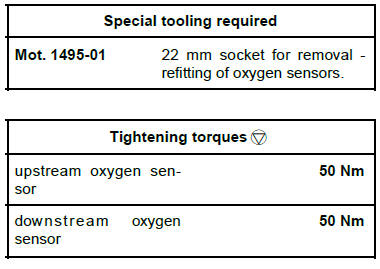

Remove the upstream oxygen sensor (A) using the (Mot. 1495-01).

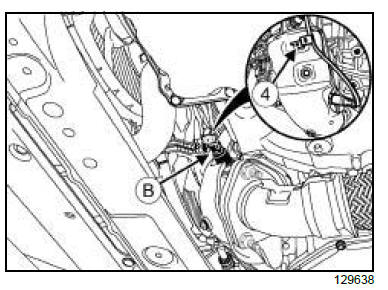

2 - DOWNSTREAM OXYGEN SENSOR (B)

Petrol injection

Disconnect the downstream oxygen sensor connector (3) .
Unclip the wiring of the oxygen sensor from the heat shield at (4) .
Remove the upstream oxygen sensor (B) using the (Mot. 1495-01).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Upstream oxygen sensor (A)

Refit the upstream oxygen sensor.
Torque tighten the upstream oxygen sensor (50 Nm) using the tool (Mot. 1495-01).
Clip the wiring of the upstream oxygen sensor onto the heat shield at (2) .
Connect the upstream oxygen sensor connector.

2 - Downstream oxygen sensor (B)

Refit the downstream oxygen sensor.
Torque tighten the downstream oxygen sensor (50 Nm) using the tool (Mot. 1495-01).
Clip the wiring of the downstream oxygen sensor onto the heat shield at (4) .
Connect the downstream oxygen sensor connector.

II - FINAL OPERATION.

Refit the engine undertray.
Connect the battery.
