Renault Koleos Service Repair Manual: Ignition

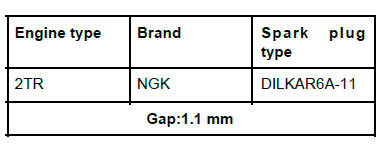

Ignition: Specifications

2TR

Coils: Removal - Refitting

2TR

REMOVAL

• Position the vehicle on a two-post lift.
• Disconnect the battery.
• Remove:
  • the engine cover,
  • The air resonator located on the rocker cover.

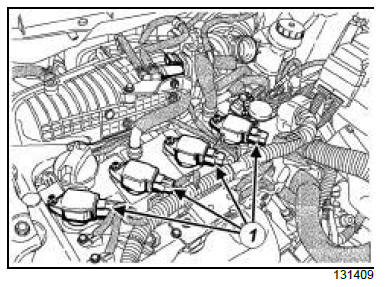

• Disconnect the connectors (1) from the ignition coils.

OPERATION FOR REMOVAL OF PART CONCERNED

• Remove:

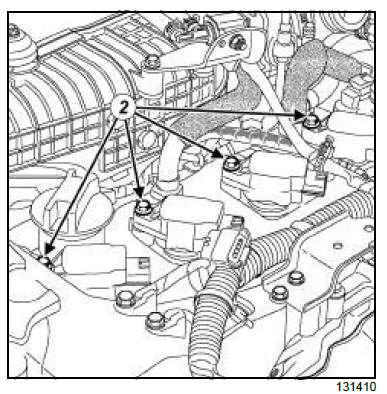

  • the ignition coil bolts (2) ,
  • the ignition coils.

REFITTING

I - REFITTING PREPARATION OPERATION

• If necessary, replace:
  • the ignition coils,
  • the ignition coil bolts.

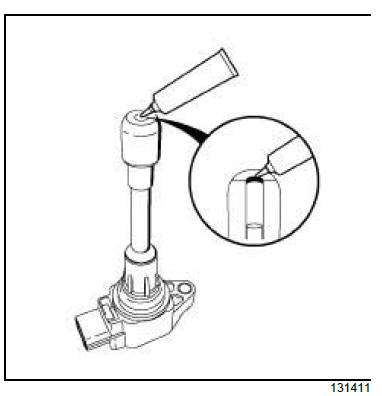

• Put a bead of FLUORSTAR 2L 2 mm in diameter on the internal perimeter of the high-tension caps of the ignition coils.

II - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the ignition coils,
  • the ignition coil bolts.
• Torque tighten the ignition coil bolts (7 Nm).

III - FINAL OPERATION.

• Connect the ignition coil connectors.
• Refit:
  • the air resonator located on the rocker cover ,
  • the engine cover.
• Connect the battery.

Plugs: Removal - Refitting

2TR

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Position the vehicle on a two-post lift .
• Disconnect the battery.
• Remove:
  • the engine cover,
  • the air resonator located on the rocker cover,
  • the ignition coils.

II - OPERATION FOR REMOVAL OF PART CONCERNED

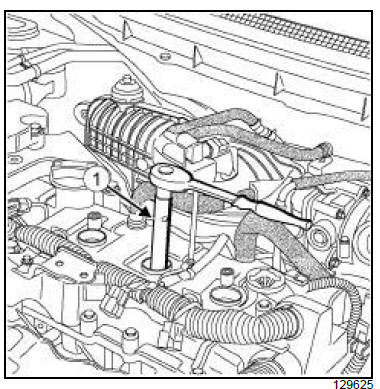

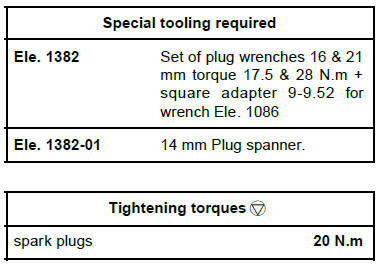

• Remove the spark plugs using the (Ele. 1382) (1) equipped with the (Ele. 1382-01).

REFITTING

I - REFITTING PREPARATION OPERATION

• Replace the spark plugs (if necessary).

II - REFITTING OPERATION FOR PART CONCERNED

• Refit the spark plugs.
• Torque tighten the spark plugs (20 N.m) using the tool (Ele. 1382) with the tool (Ele. 1382-01) attached.

III - FINAL OPERATION

• Refit:
  • the ignition coils
  • the air resonator located on the rocker cover
  • the engine cover.
• Connect the battery.
