Renault Koleos Service Repair Manual: Camshaft position sensor: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Diesel injection / Camshaft position sensor: Removal - Refitting

M9R

Diesel injection

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the front engine cover.

Diesel injection

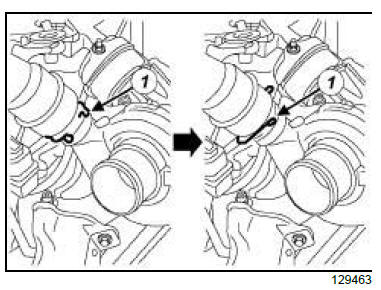

  • Turn the clip (1) on the intercooler air inlet pipe.

Diesel injection

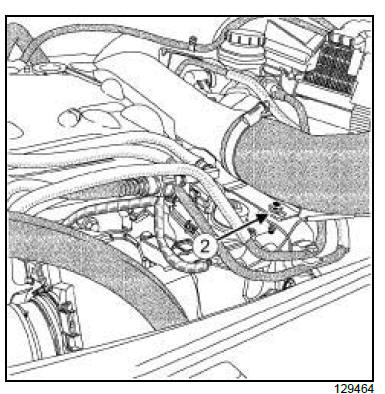

  • Remove the intercooler air inlet pipe bolt (2) from the fuel pipe support.
  • Move the intercooler air inlet pipe to one side.

Diesel injection

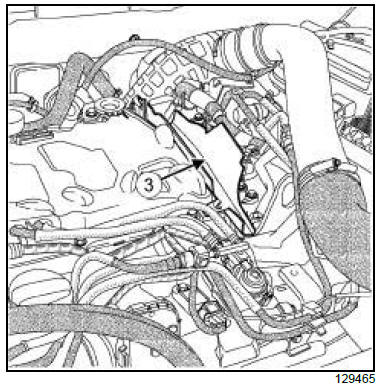

  • Remove the protector plate (3) from the injector rail protector.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Diesel injection

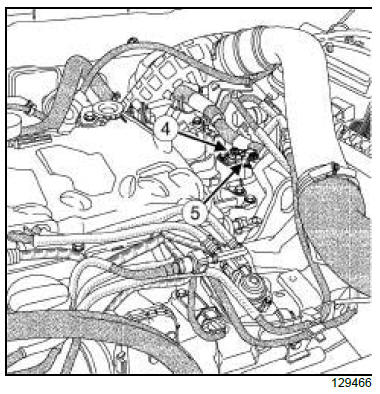

  • Disconnect the camshaft position sensor connector.
  • Remove:
    • the bolt (4) from the camshaft position sensor,
    • the camshaft position sensor (5) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the seal of the intercooler air inlet pipe.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the new camshaft position sensor seal.
  • Lubricate the camshaft position sensor seal with engine oil.
  • Refit:
    • the camshaft position sensor,
    • the camshaft position sensor bolt.

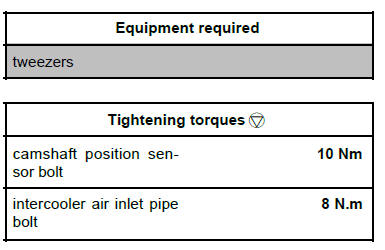

  • Tighten to torque the camshaft position sensor bolt (10 Nm).
  • Connect the camshaft position sensor connector.

III - FINAL OPERATION

Diesel injection

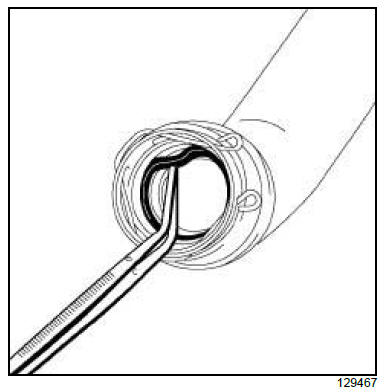

  • Remove the intercooler air inlet pipe seal using a tweezers.

Diesel injection

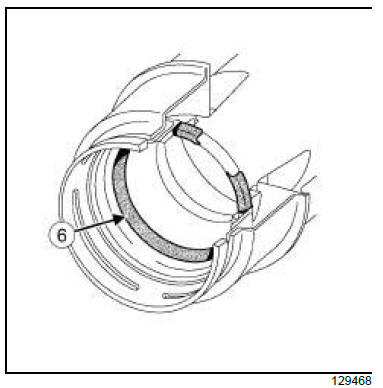

Note: Check that the seal (6) on the intercooler air inlet pipe is fitted the correct way round.
  • Refit:
    • the new intercooler air inlet pipe seal,
    • the protector plate on the injector rail protector.
  • Turn the intercooler air inlet pipe to refit the clip in its housing.
  • Clip the intercooler air inlet pipe onto the turbocharger.
  • Refit the intercooler air inlet pipe bolt on the fuel pipe support.
  • Torque tighten the intercooler air inlet pipe bolt (8 N.m).
  • Refit the engine cover.
