Renault Koleos Service Repair Manual: Camshaft dephaser solenoid valve: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Top and front of engine / Camshaft dephaser solenoid valve: Removal - Refitting

2TR

Top and front of engine

IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.



IMPORTANT Wear protective gloves during the operation.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
Note: Place a piece of wood or equivalent on the bearing surface to ensure complete stability.



Note: Place an object behind the trolley jack or equivalent equipment as a support to ensure complete stability.

Top and front of engine

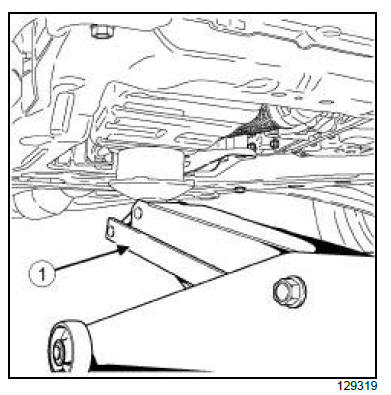

  • Place the trolley jack (1) or an equivalent engine supporting tool under the cylinder block.

Top and front of engine

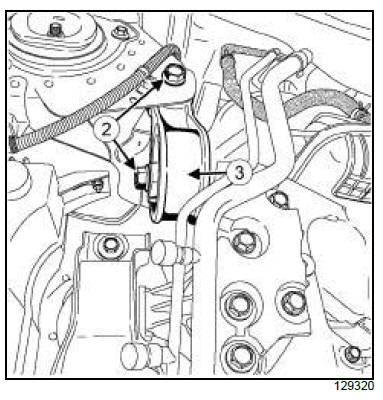

  • Remove:
    • the upper engine tie-bar bolts (2) ,
    • the upper engine tie-bar (3) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Top and front of engine

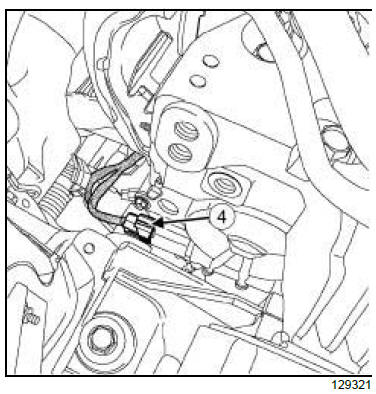

  • Remove the solenoid valve connector (4) from the camshaft dephaser.

Top and front of engine

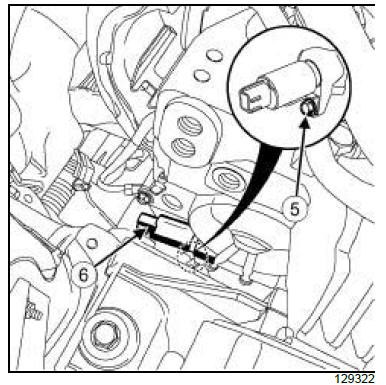

  • Remove:
    • the camshaft dephaser solenoid valve bolt (5) ,
    • the camshaft dephaser solenoid valve (6) .

REFITTING

Top and front of engine

  • Always replace:

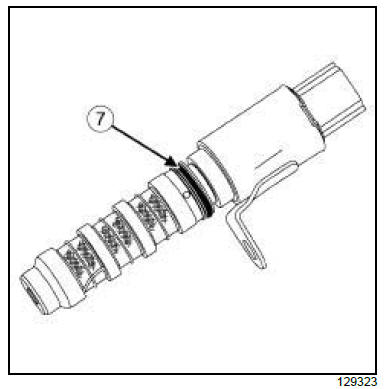

    • the new O-ring (7) on the camshaft dephaser solenoid valve (6) ,
    • the new washers on the upper engine tie-bar bolt (2) .

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the camshaft dephaser solenoid valve (6) ,
    • the camshaft dephaser solenoid valve bolt (5) .
  • Torque tighten the camshaft dephaser solenoid valve bolt (6 N.m).
  • Refit the camshaft dephaser solenoid valve connector (4) .

II - FINAL OPERATION

  • Refit:
    • the upper engine tie-bar (3) ,
    • the upper engine tie-bar bolts (2) .
  • Torque tighten the upper engine tie-bar bolts (130 N.m) (2) .
  • Remove the trolley jack (1) or equivalent engine supporting tool from under the cylinder block.
