Renault Koleos Service Repair Manual: Oil filter: Removal - Refitting

M9R

Engine and cylinder block assembly

WARNING

Always check the oil level using the dipstick.

Do not exceed the maximum level on the dipstick (could destroy the engine).

Correct the engine oil level if necessary before delivering the vehicle to the customer.



Note: When filling up the engine oil, always allow at least 10 minutes for the oil to drain down before checking with a dipstick.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Remove the engine undertray.

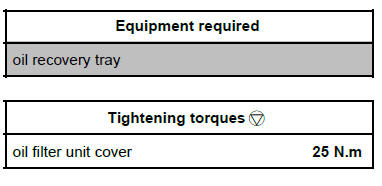

  • Place the oil recovery tray under the oil filter.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

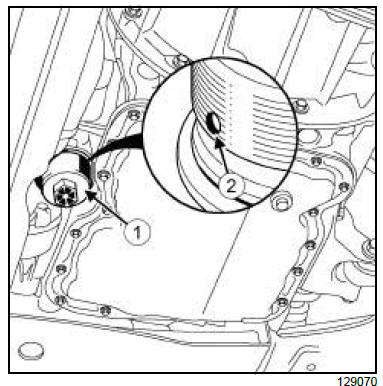

  • Undo the oil filter unit cover (1) until oil flows through the opening (2) .
  • Allow the oil contained in the oil filter unit to flow.

Engine and cylinder block assembly

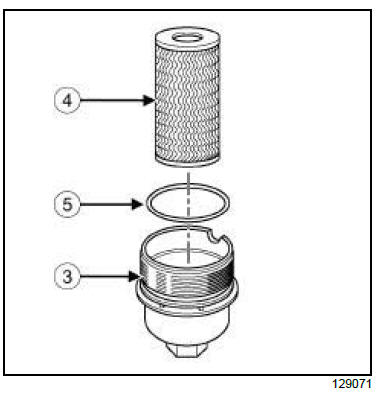

  • Remove:
    • the cover (3) - oil filter (4) assembly,
    • the cover seal (5) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • parts always to be replaced: Oil filter cartridge (10,05,05,04) thick, to the alternator rotor.
    parts always to be replaced: Oil filter cover seal (10,05,05,10) thick, to the alternator rotor.
  • Clean the oil filter unit cover.

Engine and cylinder block assembly

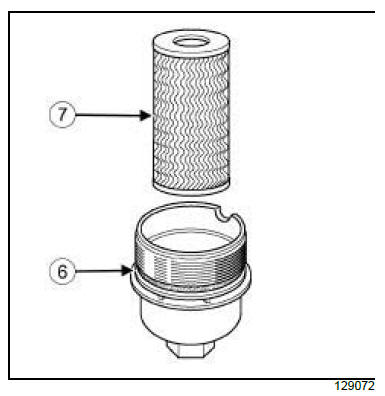

  • Fit:
    • a new cover seal (6) ,
    • a new filter element (7) in the cover.

II - REFITTING OPERATION FOR PART CONCERNED

  • Manually tighten the "cover - oil filter" assembly.
  • Torque tighten the oil filter unit cover (25 N.m).

III - FINAL OPERATION.

  • Refit the engine undertray.
  • Start the engine and let it run until the oil pressure warning light goes off.
  • Adjust the engine oil level.
  • Refit the "filler cap - dipstick" assembly.

2TR

Engine and cylinder block assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Remove:
    • the front right-hand wheel
    • the front right-hand wheel arch liner
    • the engine undertray.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

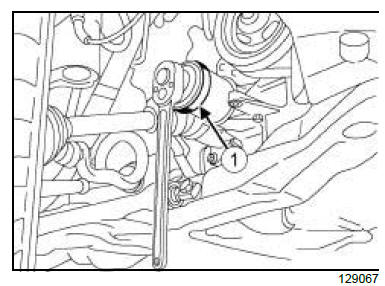

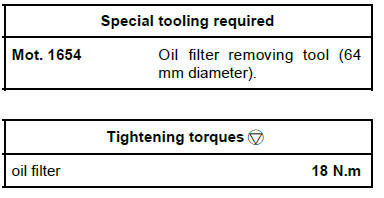

  • Fit the (Mot. 1654) (1) on the oil filter using a ratchet.
  • Remove the oil filter.

REFITTING

I - REFITTING PREPARATION OPERATION

  • parts always to be replaced: Oil filter (10,05,05, 03)
  • Wipe the oil traces around the oil filter in order to be able to detect possible leaks.
  • Lubricate the oil filter seal with new engine oil.

II - REFITTING OPERATION FOR PART CONCERNED

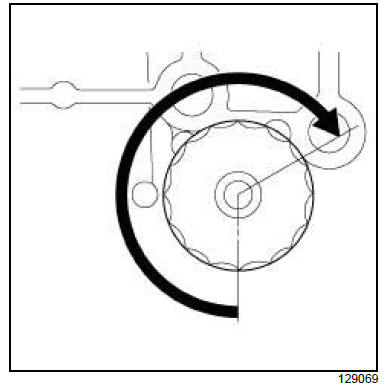

  • Screw on the oil filter until it makes contact.

Engine and cylinder block assembly

  • Torque tighten the oil filter (18 N.m).

III - FINAL OPERATION

  • Refit:
    • the front right-hand wheel arch liner
    • the front right-hand wheel
    • the engine undertray.
  • Top up the engine oil if necessary.
