Passenger compartment storage, fittings

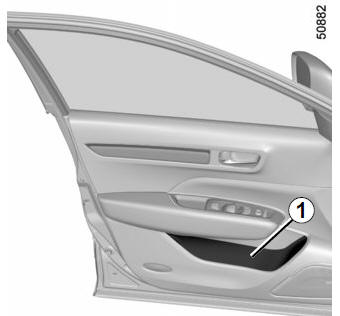

Front door storage pockets 1

They can hold a 1.5-litre bottle.

Nothing should be placed on the floor area in front of the driver as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use.

Passenger compartment storage, fittings

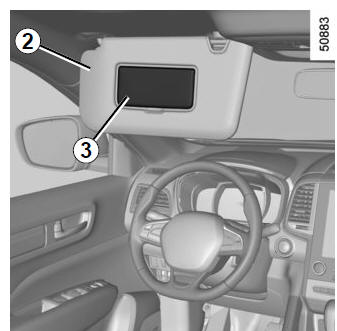

Front sun visor

Lower sun visor 2.

Courtesy mirrors

Lift the cover 3.

When driving, ensure the courtesy mirror cover is closed. Risk of injury.

Passenger compartment storage, fittings

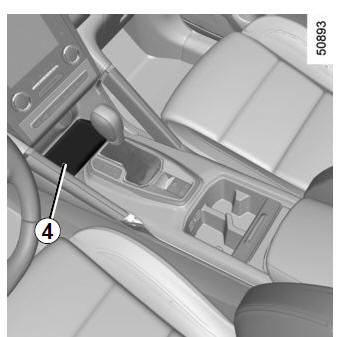

Centre console storage compartment 4

Ensure that no hard, heavy or pointed objects are placed in the "open" storage compartments in such a way that they may fall onto passengers during sudden turning, braking or in the event of an accident.

Passenger compartment storage, fittings

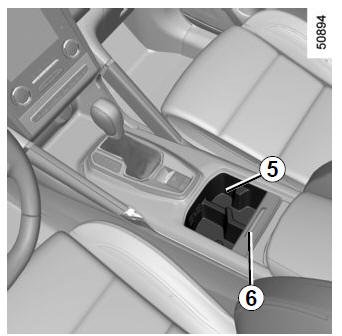

Cup holders 5

This can be used for storing a mobile ashtray, cup holder, etc.

Slide the curtain 6 to open the storage compartment.

When turning corners, accelerating or braking, ensure that the receptacle being held by the cup holder is not dislodged.

There is a risk of injury if hot liquid escapes.

Passenger compartment storage, fittings

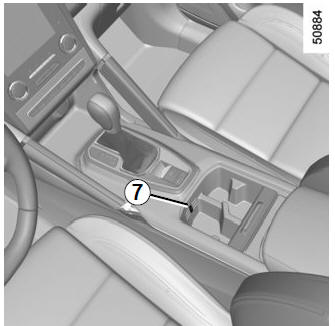

Raise the button 7 to ventilate the storage according to the temperature set by the air conditioner. Lower the button to stop the function.

Passenger compartment storage, fittings

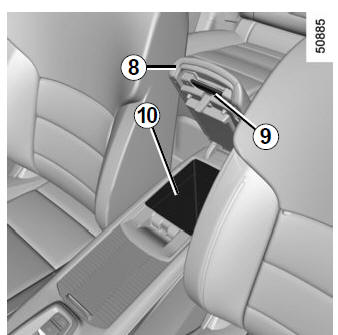

Front centre armrest storage compartment 10

With the sliding armrest 8 in its rearmost position, lifting the control 9 and raise the armrest.

Do not kneel down or foot on the armrest. There is a risk of injury.



Do not insert your finger while sliding the armrest.

There is a risk of injury.

Passenger compartment storage, fittings

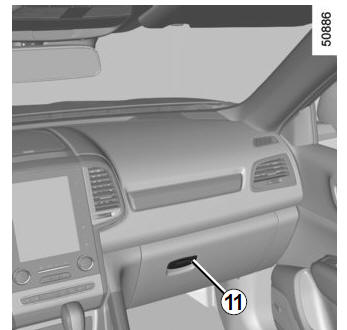

Glove box

To open the glove box, lift the catch 11.

Passenger compartment storage, fittings

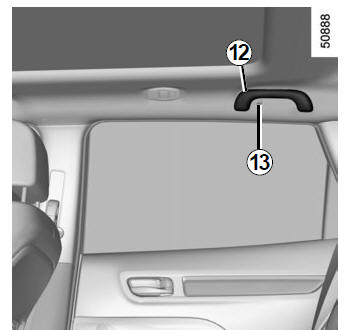

Grab handle 12

This offers support and can be held when the vehicle is being driven.

Do not use it for getting into or out of the vehicle.

Passenger compartment storage, fittings

Clothes hooks 13

Passenger compartment storage, fittings

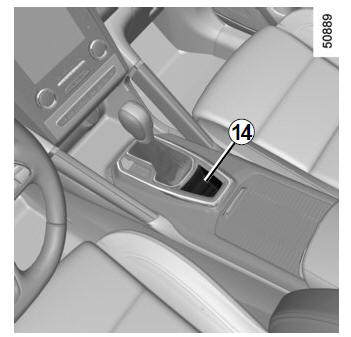

Coin holder 14 (depending on the vehicle)

Passenger compartment storage, fittings

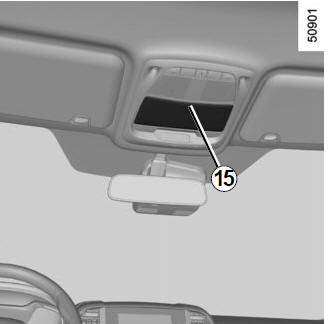

Sunglasses holder 15 (depending on the vehicle)

Push 15 to open the sunglasses holder.

Passenger compartment storage, fittings

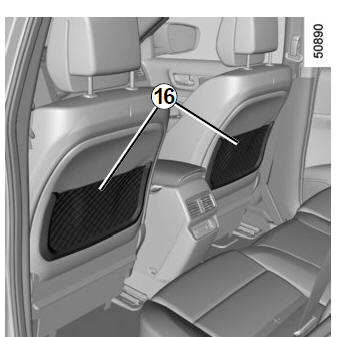

Front seat storage pockets 16

Passenger compartment storage, fittings

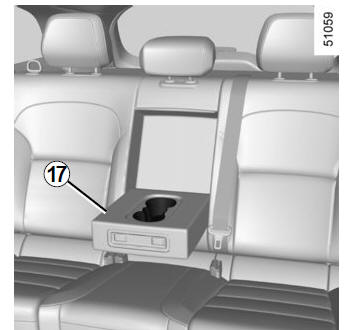

Rear armrest with cup holder

Pull down the armrest 17.

When turning corners, accelerating or braking, ensure that the receptacle being held by the cup holder is not dislodged.

There is a risk of injury if hot liquid escapes.

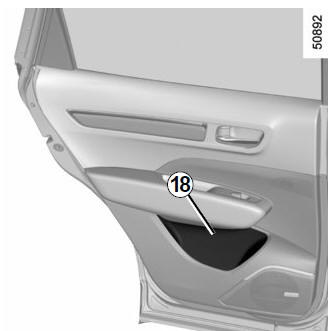

Rear door storage compartment 18

Ensure that no hard, heavy or pointed objects are placed in the "open" storage compartments in such a way that they may fall onto passengers during sudden turning, braking or in the event of an accident.
