Renault Koleos Service Repair Manual: Driver's position

Cigarette lighter: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

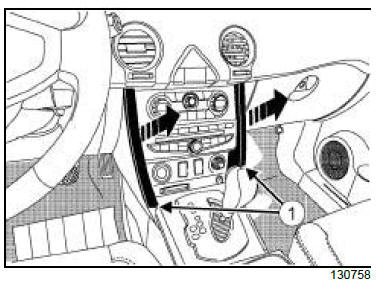

  • Remove the centre front panel side trim (1) .

Electrical equipment

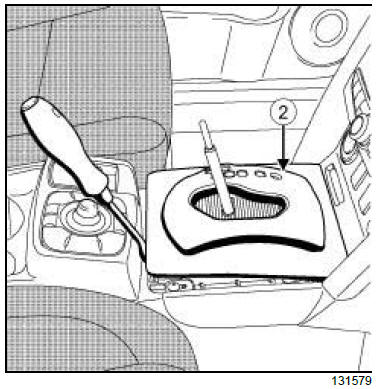

  • Remove the plate (2) from the gear lever (see Centre console: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

  • Remove:

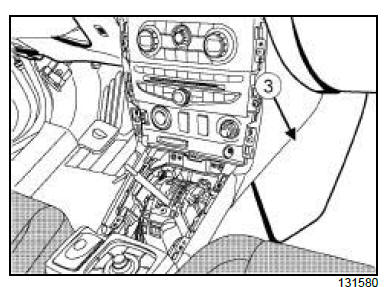

    • the lower covers (3) from the centre panel on both sides,
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

  • Remove:

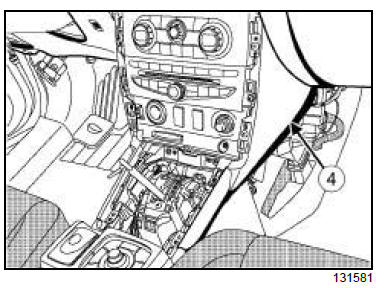

    • the lower trims (4) from the centre panel on both sides,
    • the CD multi-changer (see 86A, Radio, CD changer: Removal - Refitting, page 86A-14) ,
    • the radio (see 86A, Radio, Radio: Removal - Refitting, page 86A-4) .

Electrical equipment

  • Remove:

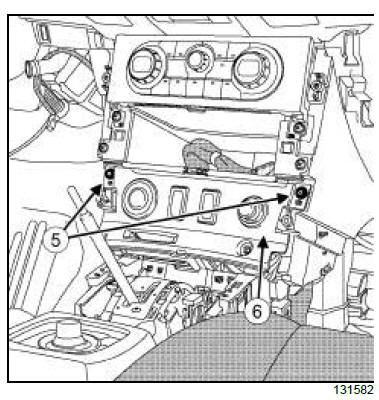

    • the starter control panel bolts (5) ,
    • the starter control panel (6) .
  • Disconnect the connectors.

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Remove the cigarette lighter.

Electrical equipment

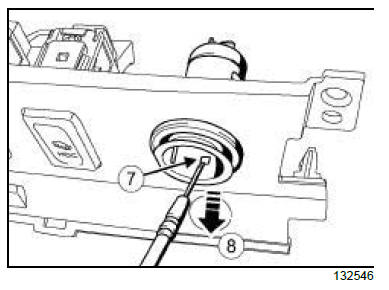

  • Keep the plastic support unlocked at (7) using a small flat-blade screwdriver.
  • Remove the cigarette lighter support in the direction of (8) .

Electrical equipment

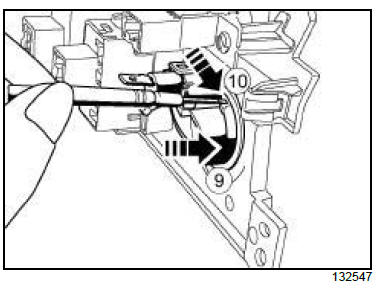

  • Remove the cigarette lighter socket in the direction of (9) by moving it in the direction of (10) using a small flat-blade screwdriver.

Electrical equipment

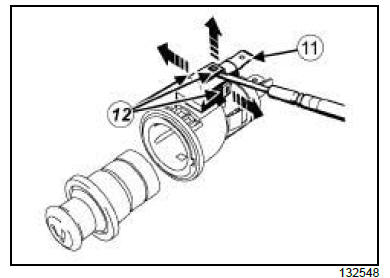

  • Unclip the bulb support (11) by pulling on the clips (12) using a flat-blade screwdriver.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Clip on the bulb mounting.
  • Refit:
    • the cigarette lighter socket on the fascia panel,
    • the cigarette lighter mounting,
    • the cigarette lighter.

II - FINAL OPERATION.

  • Connect the connectors.
  • Refit:
    • the starter control panel,
    • the starter control panel bolts,
    • the radio (see 86A, Radio, Radio: Removal - Refitting, page 86A-4) ,
    • the CD multi-changer (see 86A, Radio, CD changer: Removal - Refitting, page 86A-14) ,
    • the centre panel lower trims on both sides,
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the centre panel lower covers on both sides,
    • the gear lever plate (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the centre front panel side trim.
