Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the control panel (see Control panel: Removal - Refitting) (61A, Heating).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

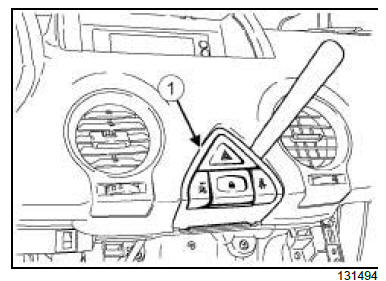

  • Remove the hazard warning light switches and the central locking switches (1) using the tool (Car.1363).
  • Disconnect the connectors.

Electrical equipment

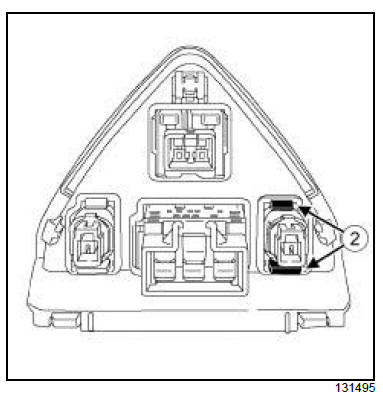

  • Unclip the clips (2) on both sides.
  • Remove the passenger front airbag deactivation switch warning light.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the passenger front airbag deactivation switch warning light.
  • Connect the connectors.
  • Refit the hazard warning light switches and the central locking switches.

II - FINAL OPERATION.

  • Refit the control panel (see Control panel: Removal - Refitting) (61A, Heating).
