Electrical equipment

IMPORTANT To avoid any risk of damaging the systems, apply the instructions relating to safety and cleanliness and the operation recommendations before carrying out the repair (see 88C, Air bag and Pretensioners, Airbag and pretensioners: Precautions for the repair, page 88C-6) .

REMOVAL

I - REMOVAL PREPARATION OPERATION

IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove the front pyrotechnic inertia reel (see 88C, Air bag and Pretensioners, Front side seat belt: Removal - Refitting, page 88C-27) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

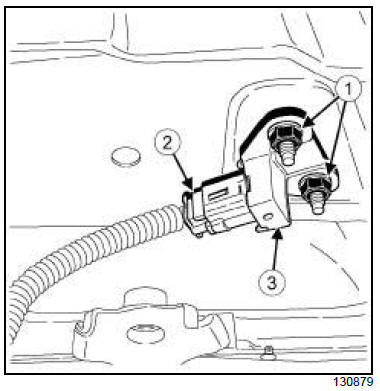

  • Remove the nuts (1) from the side impact sensor.
  • Disconnect the connector (2) from the side impact sensor.
  • Remove the side impact sensor (3) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the side impact sensor nuts.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the side impact sensor,
    • the new side impact sensor nuts.

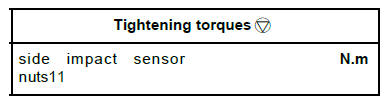

  • Torque tighten the side impact sensor nuts11 (N.m).
  • Connect the side impact sensor connector.

III - FINAL OPERATION.

  • Refit the front pyrotechnic inertia reel (see 88C, Air bag and Pretensioners, Front side seat belt: Removal - Refitting, page 88C-27) .
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
IMPORTANT To eliminate the risk of any accident, do not reuse pyrotechnic components.

It is essential to destroy pretensioners or airbags before scrapping a vehicle or a part only (see 88C, Air bag and Pretensioners, Airbags and pretensioners: Recycling - Destruction, page 88C-7) .
