Renault Koleos Service Repair Manual: Wiring harness

Computers: List and location of components

I - LIST OF COMPONENTS

  1. Additional cornering lights computer
  2. Tyre pressure monitor computer
  3. Passenger compartment fuse and relay box
  4. UCH
  5. Protection and switching unit
  6. Engine fuse and relay box
  7. Injection computer
  8. Automatic gearbox computer
  9. Pre-postheating unit
  10. Radio
  11. Yaw speed and lateral acceleration sensor
  12. ABS / ESP computer
  13. Navigation computer
  14. Rear final drive coupler computer
  15. Telephone computer
  16. Airbag computer
  17. Radio unit

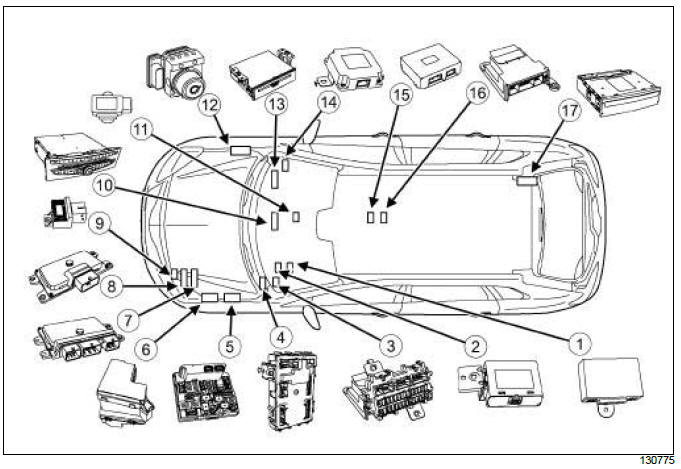

II - LOCATION OF COMPONENTS

Electrical equipment

Computers integrated into components

Electrical equipment

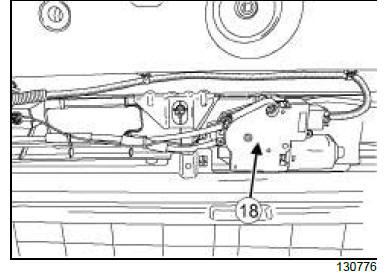

The sunroof computer is integrated into the electric motor (18) .

Electrical equipment

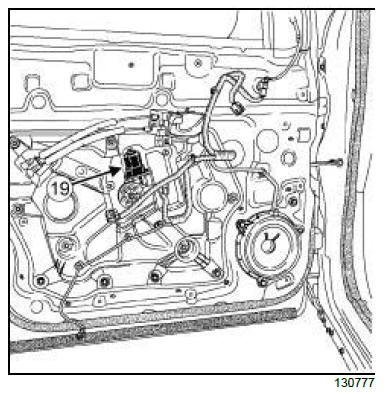

The anti-pinch function is integrated into the electric motor (19) .

Diagnostic socket: List and location of components

I - LIST OF COMPONENTS

  1. Diagnostic socket

II - LOCATION OF COMPONENTS

1 - Diagnostic socket

Electrical equipment

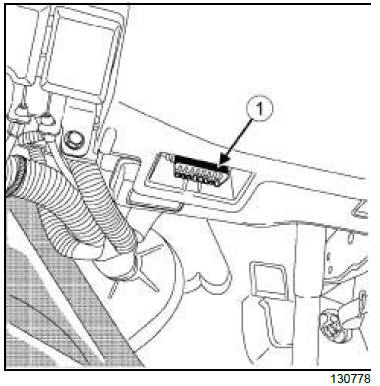

The diagnostic socket is located on the lower section of the dashboard lower cover on the driver's side.

    Engine compartment connection unit

    Air bag and pretensioners
