FRONT AND REAR PROXIMITY RADAR

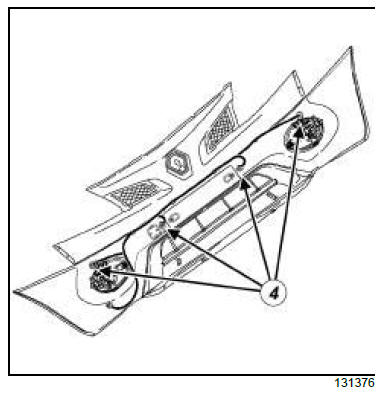

4 - Front proximity sensors

Electrical equipment

Four proximity radars (4) are clipped into the supports on the front bumper.

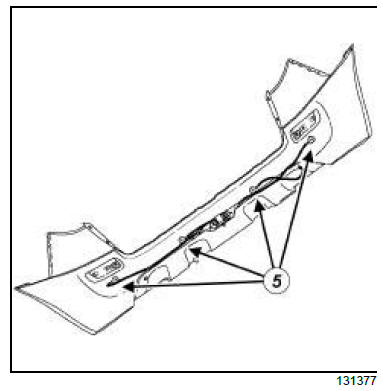

5 - Rear proximity sensors

Electrical equipment

Four proximity radars (5) are clipped into the supports on the rear bumper.

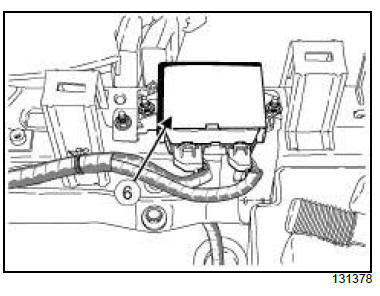

6 - Parking distance control computer

Electrical equipment

FRONT AND REAR PROXIMITY RADAR

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

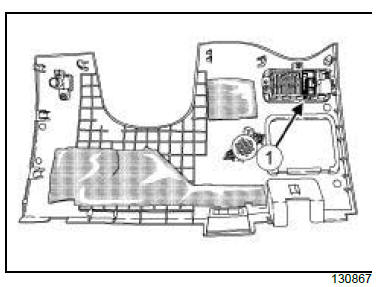

  • Unclip the parking distance control switch (1) from the dashboard lower cover.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Clip the parking distance control switch onto the dashboard lower cover.

II - FINAL OPERATION.

  • Refit the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).
