Renault Koleos Service Repair Manual: Display: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

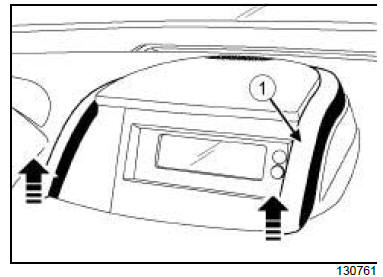

  • Remove the front centre speaker trim (1) .

Electrical equipment

  • Remove:

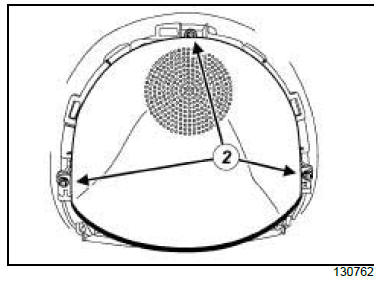

    • the front centre speaker cover bolts (2) ,
    • the front centre speaker cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

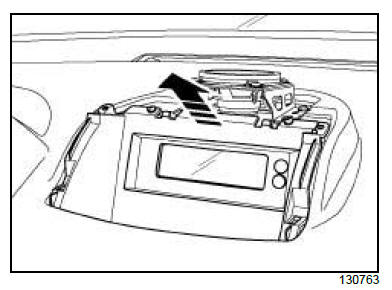

  • Unclip the " display - display protector " assembly.
  • Disconnect the display connector.

Electrical equipment

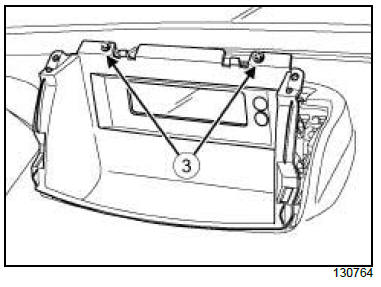

  • Remove the upper bolts (3) .

Electrical equipment

  • Remove:

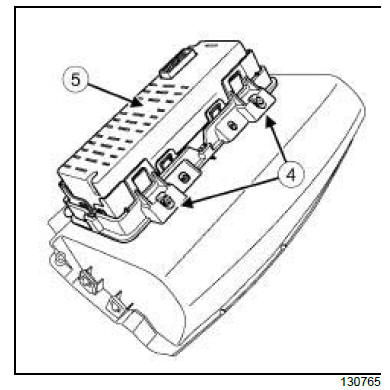

    • the lower bolts (4) ,
    • the display (5) from the display protector.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the display on the display protector,
    • the lower bolts,
    • the upper bolts.
  • Connect the connector.
  • Clip on the " display - display protector " assembly.

II - FINAL OPERATION.

  • Refit:
    • the front centre speaker cover,
    • the front centre speaker cover bolts,
    • the front centre speaker trim.
