Note: The hazard WARNING light switch and the central door locking switch constitute a single part.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the control panel (see Control panel: Removal - Refitting) (61A, Heating).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

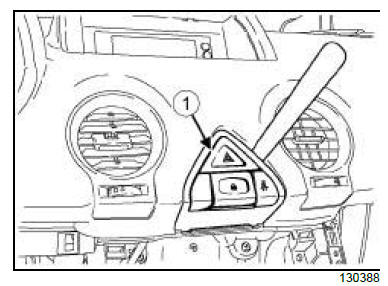

  • Remove the hazard warning light and central door locking switches (1) using the tool (Car. 1363).
  • Disconnect the hazard warning light and central door locking switch connectors.

Electrical equipment

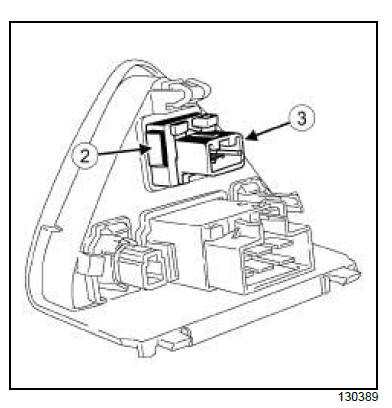

  • Unclip the clips (2) on both sides.
  • Remove the hazard warning lights switch (3) .

Electrical equipment

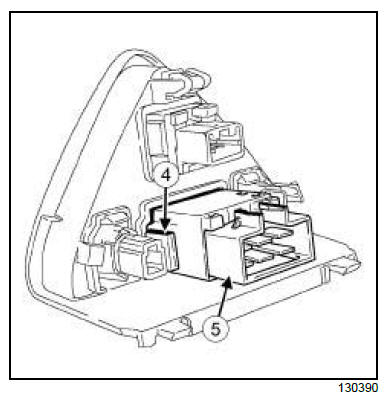

  • Unclip the clips (4) on both sides.
  • Remove the central door locking switch (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the central door locking switch,
    • the hazard warning light switch.
  • Connect the hazard warning light and central door locking switch connectors.

II - FINAL OPERATION.

  • Refit the control panel (see Control panel: Removal - Refitting) (61A, Heating).

ESP inhibitor switch: Removal - Refitting

ELECTRONIC STABILITY PROGRAM 2 or ELECTRONIC STABILITY PROGRAM

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

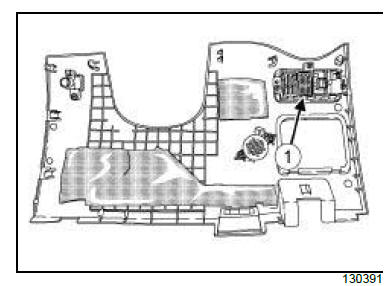

  • Unclip the ESP inhibitor switch (1) from the dashboard lower cover.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the ESP inhibitor switch on the dashboard lower cover.

II - FINAL OPERATION.

  • Refit the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Remote headlight beam adjustment control: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

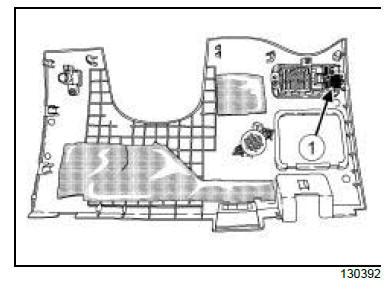

  • Unclip the remote headlight beam adjustment control (1) from the dashboard lower cover.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the remote headlight beam adjustment control on the dashboard lower cover.

II - FINAL OPERATION.

  • Refit the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Lighting dimmer: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Unclip the lighting dimmer (1) from the dashboard lower cover.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the lighting dimmer on the dashboard lower cover.

II - FINAL OPERATION.

  • Refit the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Exterior rear view mirror control switch: Removal - Refitting

Electrical equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

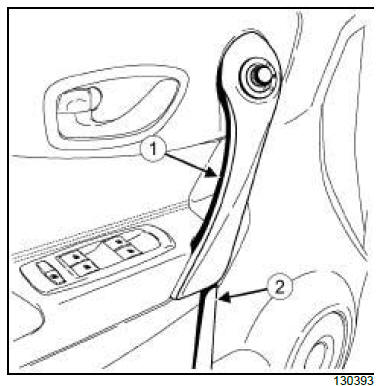

  • Remove the front door handle trim (1) using the tool (Car. 1363) (2) .

Electrical equipment

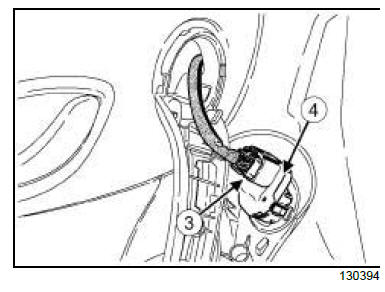

  • Disconnect the door mirror control switch connector (3) .
  • Remove the door mirror control switch (4) from the front door handle trim.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Connect the door mirror control switch connector.
  • Refit:
    • the door mirror control switch on the front door handle trim,
    • the front door handle trim.
    Steering column switch assembly: Removal - Refitting

    Heated rear screen: Repair
