Renault Koleos Service Repair Manual: Rotary switch: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Set the wheels straight ahead.
IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) ,
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

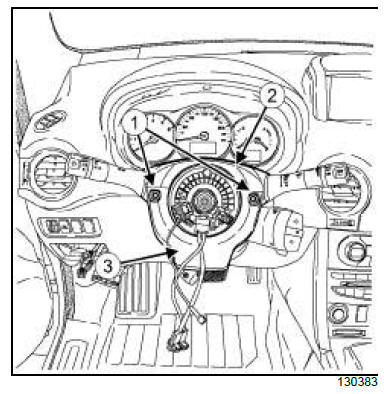

  • Remove the bolts (1) from the cover under the steering wheel.
  • Unclip:
    • the upper half of the cover (2) under the steering wheel,
    • the lower half of the cover (3) under the steering wheel.

Electrical equipment

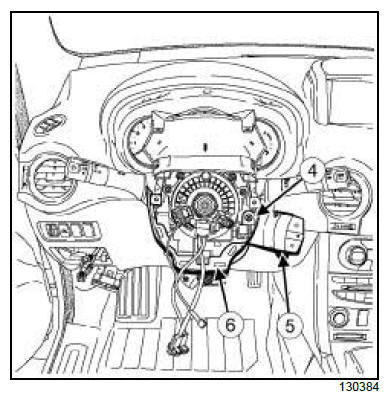

  • Remove:
    • the radio control satellite nut (4) ,
    • the radio control satellite (5) .
  • Disconnect the radio control satellite connector.
  • Unclip the lower half of the cover (6) under the steering wheel.

Electrical equipment

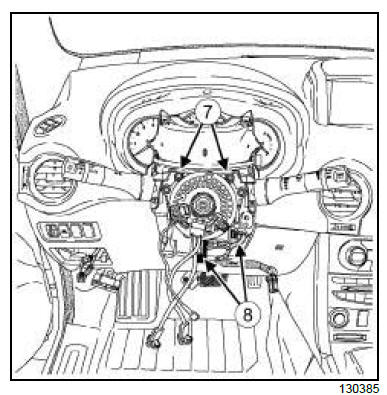

  • Remove the rotary switch bolts (7) .
  • Unclip the rotary switch.
  • Disconnect the rotary switch connectors (8) .

REFITTING

I - REFITTING PREPARATION OPERATION

Always replace the steering wheel nut.

II - REFITTING OPERATION FOR PART CONCERNED

WARNING To prevent damaging the rotary switch, do not turn the mobile section of the rotary switch.
  • Connect the rotary switch connectors.
  • Refit:
    • the rotary switch,
    • the rotary switch bolts.

Electrical equipment

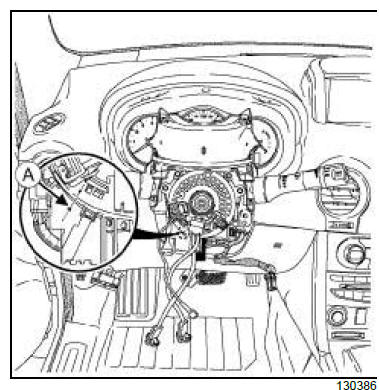

  • Adjust the neutral position of the rotary switch:
    • turn the rotary switch carefully clockwise as far as it will go,
    • turn the rotary switch anticlockwise (approximately two and a half turns),
    • stop rotating at (A) .
  • Refit the lower half of the cover under the steering wheel.
  • Connect the radio control satellite connector.
  • Refit:
    • the radio control satellite,
    • the radio control satellite nut,
    • the lower half of the cover under the steering wheel,
    • the upper half of the cover under the steering wheel,
    • the bolts of the cover under the steering wheel.

III - FINAL OPERATION.

  • Refit:
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly),
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) .
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
