I - LIST OF COMPONENTS

  1. UCH
  2. Fuse boxes and passenger compartment relays
  3. Courtesy light
  4. Headlining light
  5. Courtesy light
  6. Storage compartment light
  7. Door sill light
  8. Luggage compartment light
  9. Centre console light

II - LOCATION OF COMPONENTS

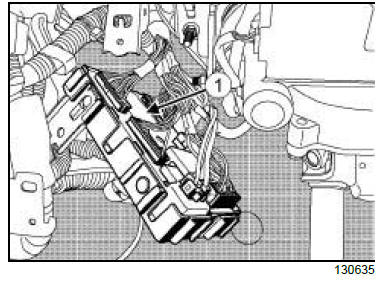

1 - UCH

Electrical equipment

2 - Passenger compartment fuse and relay box

Electrical equipment

3 - Courtesy light

Electrical equipment

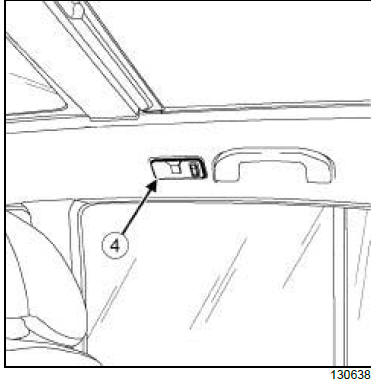

4 - Headlining light

Electrical equipment

5 - Courtesy light

Electrical equipment

6 - Glove box light

Electrical equipment

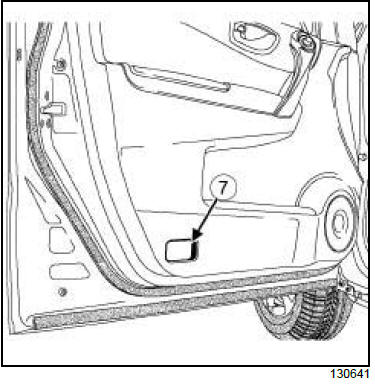

7 - Door sill light

Electrical equipment

8 - Luggage compartment light

Electrical equipment

9 - Centre console light

Electrical equipment

Interior light: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

Note: If using a flat-blade screwdriver, protect the courtesy light unit with a cloth.
  • Unclip the courtesy light (1) using a small flat-blade screwdriver.
  • Disconnect the connector.

Electrical equipment

  • Unclip the transparent cover (2) .
  • Remove the bulb.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • When replacing the bulb, use an approved 12V 8W bulb.
  • Connect the courtesy lights connector.
  • Refit the courtesy light.
    Interior lighting

    Headlining light: Removal - Refitting
