DISCHARGE LAMPS

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

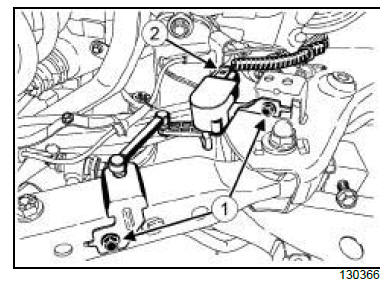

  • Remove the bolts (1) from the headlight beam adjustment rear sensor.
  • Disconnect the connector (2) from the headlight beam adjustment rear sensor.
  • Remove the headlight beam adjustment rear sensor.

REFITTING

I - REFITTING PREPARATION OPERATION

Note: Replace the sensor if the linkage is damaged along its length or if there is damage to the ball joint - lever - linkage connection.

II - REFITTING OPERATION FOR PART CONCERNED

  • Connect the headlight beam adjustment rear sensor connector.
  • Fit the sensor with its mounting to the vehicle.
  • Refit:
    • the headlight beam adjustment rear sensor,
    • the bolts for the headlight beam adjustment rear sensor.

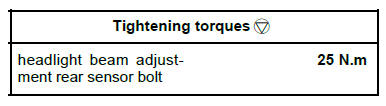

  • Torque tighten the headlight beam adjustment rear sensor bolt (25 N.m).

III - FINAL OPERATION.

  • Adjust:
    • the front headlights (see 80B, Headlights, Headlight: Adjustment, page 80B-3) ,
    • the headlight beam adjustment rear sensor (see Fault Finding - Programming)(80B, Headlights).
