Renault Koleos Service Repair Manual: Front lighting: List and location of components

Renault Koleos Service Repair Manual / Electrical equipment / Headlights / Front lighting: List and location of components

WITHOUT DISCHARGE LAMPS

I - LIST OF COMPONENTS

  1. Main beam headlight bulbs
  2. Dipped beam headlight bulb
  3. Side light bulbs
  4. Direction indicator bulb
  5. Front fog light
  6. Side repeater
  7. Vertical adjusting bolt
  8. Horizontal adjusting bolt

II - LOCATION OF COMPONENTS

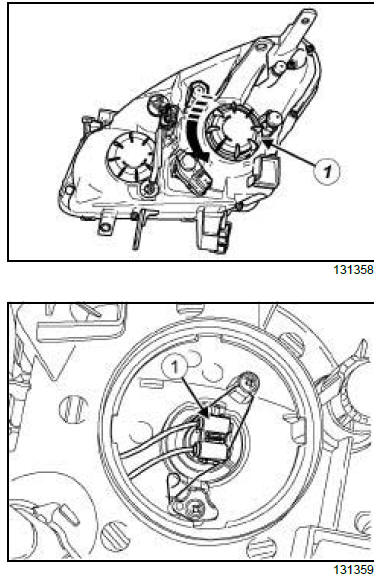

1 - Main beam headlight bulbs

Electrical equipment

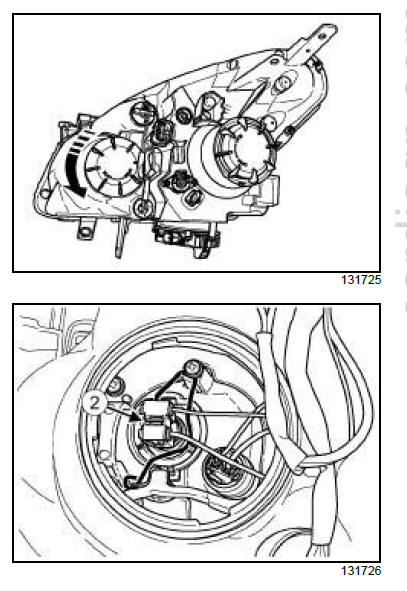

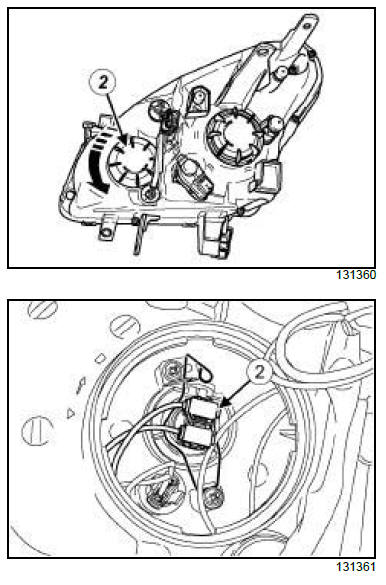

2 - Dipped beam headlight bulb

Electrical equipment

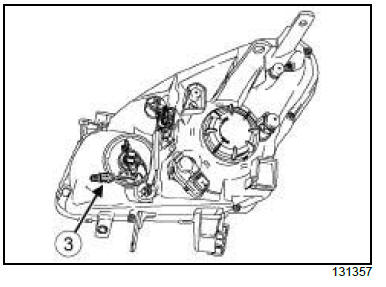

3 - Side light bulbs

Electrical equipment

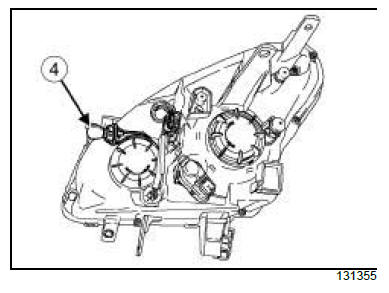

4 - Direction indicator bulb

Electrical equipment

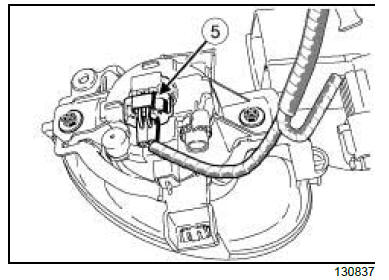

5 - Front fog light

Electrical equipment

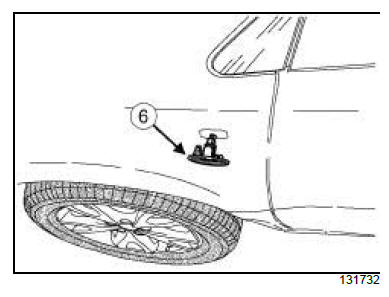

6 - Side repeater

Electrical equipment

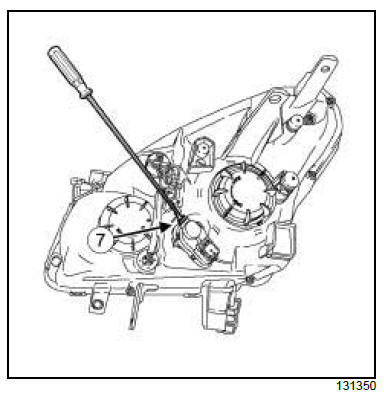

7 - Vertical adjusting bolt

Electrical equipment

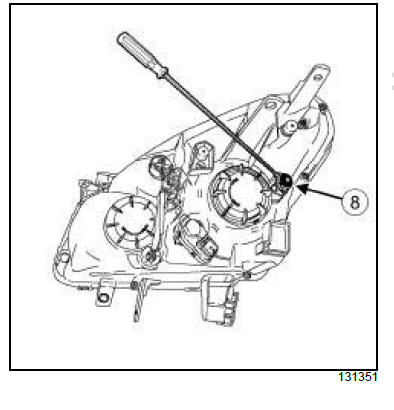

8 - Horizontal adjusting bolt

Electrical equipment

DISCHARGE LAMPS

I - LIST OF COMPONENTS

  1. Discharge bulb
  2. Cornering light bulb
  3. Side light bulbs
  4. Direction indicator bulb
  5. High voltage unit
  6. Cornering lights computer
  7. Headlight adjustment rear sensor
  8. Side repeater
  9. Vertical adjusting bolt
  10. Horizontal adjusting bolt

II - LOCATION OF COMPONENTS

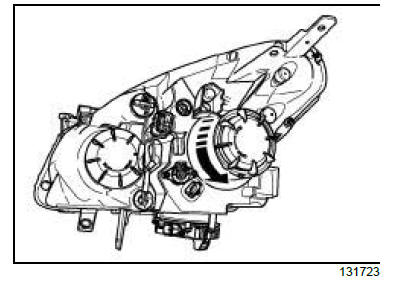

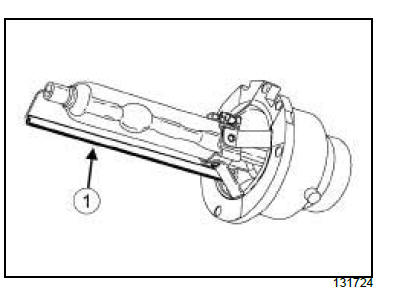

1 - Discharge bulb

Electrical equipment

Electrical equipment

2 - Cornering light bulb

Electrical equipment

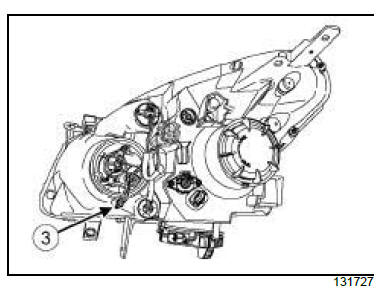

3 - Side light bulbs

Electrical equipment

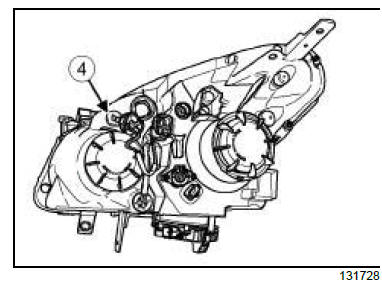

4 - Direction indicator bulb

Electrical equipment

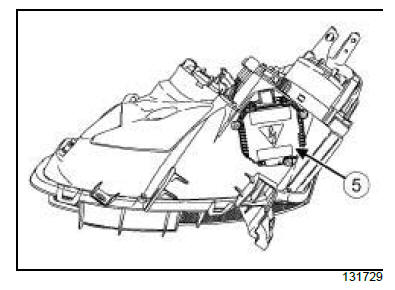

5 - High voltage unit

Electrical equipment

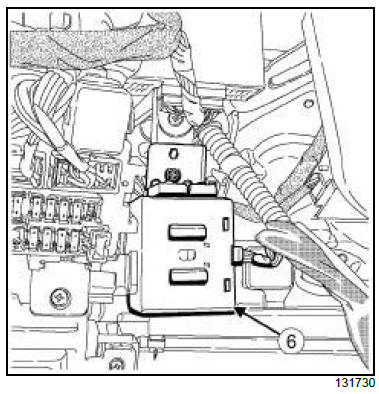

6 - Cornering lights computer

Electrical equipment

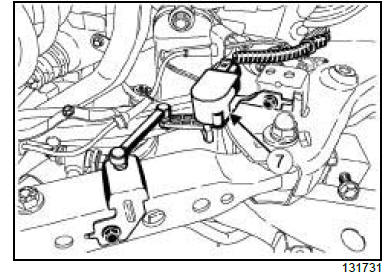

7 - Headlight adjustment rear sensor

Electrical equipment

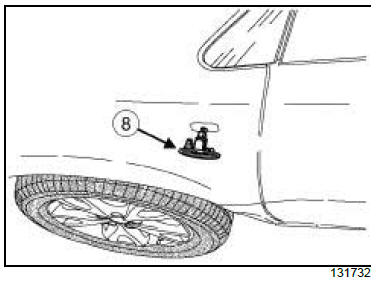

8 - Side repeater

Electrical equipment

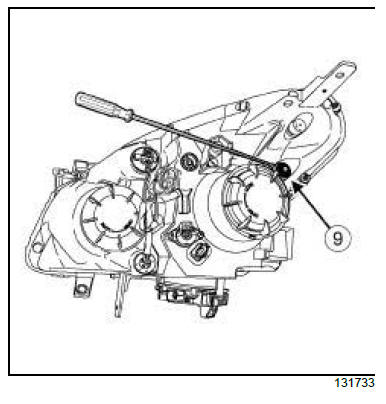

9 - Vertical adjusting bolt

Electrical equipment

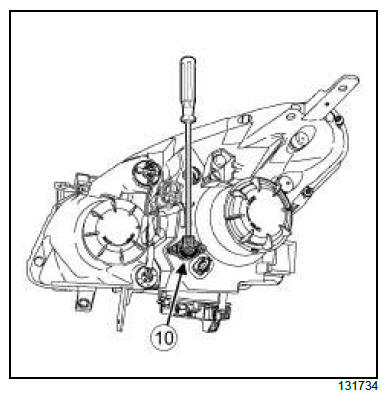

10 - Horizontal adjusting bolt

Electrical equipment

    Headlight: Adjustment

    Headlight bulb: Removal - Refitting
