Renault Koleos Service Repair Manual: Battery tray: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Battery / Battery tray: Removal - Refitting

M9R

Electrical equipment

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair (see 80A, Battery, Battery: Precautions for the repair, page 80A-1) .

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

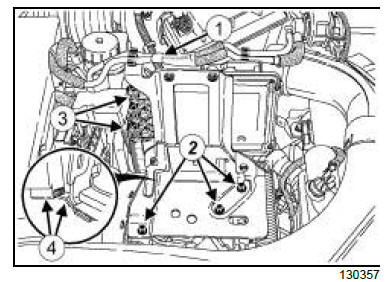

  • Unclip the hose (1) from the turbocharging pressure regulator.
  • Remove the bolts (2) from the battery tray.
  • Disconnect the connectors (3) from the diesel injection computer.
  • Unclip:
    • the wiring,
    • the wiring bracket (4) from the battery tray.
  • Remove:
    • the battery tray - diesel injection computer assembly,
    • the diesel injection computer from the battery tray (see Diesel injection computer: Removal - Refitting) (13B, Diesel injection).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the diesel injection computer on the battery tray (see Diesel injection computer: Removal - Refitting) (13B, Diesel injection),
    • the battery tray - diesel injection computer assembly.
  • Clip:
    • the wiring bracket onto the battery tray,
    • the wiring.
  • Connect the diesel injection computer connectors.
  • Refit the battery tray bolts.
  • Torque tighten the battery tray bolts (10 N.m).
  • Clip on the turbocharging pressure regulator hose.

II - FINAL OPERATION.

  • Refit the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .

2TR

Electrical equipment

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair (see 80A, Battery, Battery: Precautions for the repair, page 80A-1) .

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the air inlet sleeve (see Air filter unit: Removal - Refitting) (12A, Fuel mixture),
    • the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

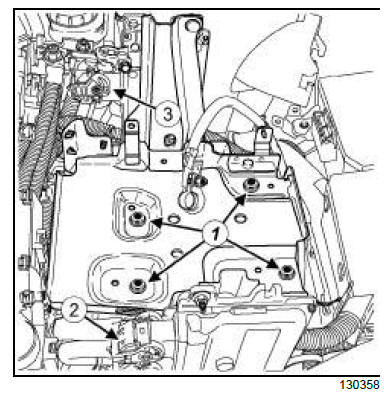

  • Remove the bolts (1) from the battery tray.
  • Disconnect:
    • the fuel injection computer connectors (2) ,
    • the gearbox computer connector (3) .
  • Unclip the wiring.
  • Remove:
    • the battery tray - fuel injection computer - gearbox computer assembly,
    • the fuel injection computer from the battery tray (see Petrol injection computer: Removal - Refitting) (17B, Petrol injection),
    • the gearbox computer from the battery tray (see Automatic gearbox converter: Removal - Refitting) (23A, Automatic gearbox).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the gearbox computer on the battery tray, (see Automatic gearbox converter: Removal - Refitting) (23A, Automatic gearbox).
    • the fuel injection computer on the battery tray (see Petrol injection computer: Removal - Refitting) (17B, Petrol injection),
    • the battery tray - fuel injection computer - gearbox computer assembly.
  • Attach the wiring.
  • Connect:
    • the gearbox computer connector,
    • the petrol injection computer connectors.
  • Refit the battery tray bolts.
  • Torque tighten the battery tray bolts (21 N.m).

II - FINAL OPERATION.

  • Refit:
    • the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) ,
    • the air inlet sleeve (see Air filter unit: Removal - Refitting) (12A, Fuel mixture).
